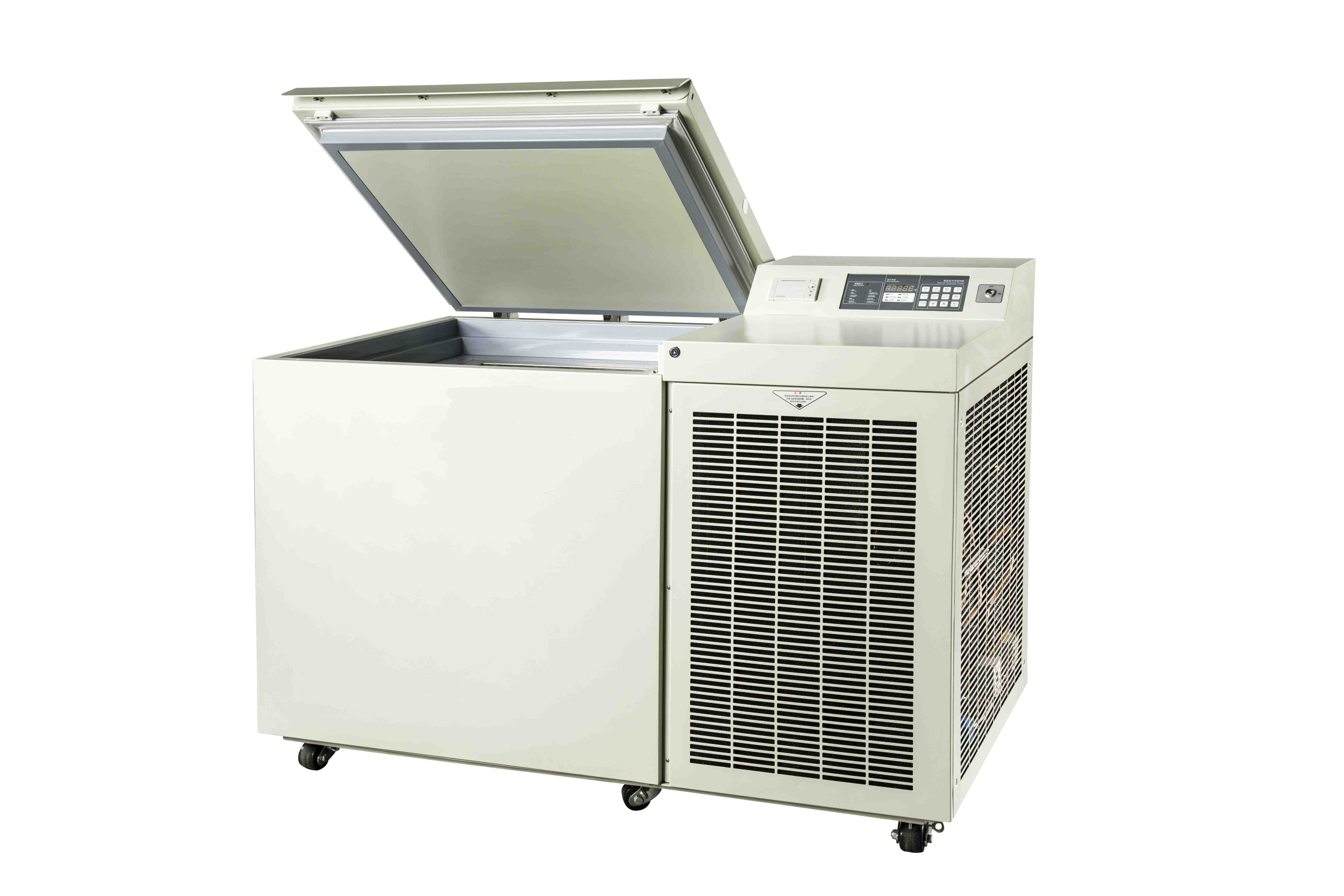

-152 ℃ Ultra low temperature freezer 128L/258L

-152 ℃ Ultra low temperature freezer

Model：LT-DW-UW128/258

Specs list:

Chest type

Inside temperature ranging from -110℃~-152℃ can be set freely, controlling precision is 1℃

Stainless steel interior, outer is painted steel panel

Rotatable assistant door handle, door with key lock.

150mm extra thick heat insulating layer

Imported Danfoss compressor (1unit), 4-6 hours reach -152℃. Very fast.

Fan electromotor with famous brand of Germany EBM

Digital temperature display

Keyboard lock and password protected configuration page

Audible and visual alarm: High or low temperature alarm, Power failure alarm, Low battery alarm, Door ajar alarm,   Filter blocking alarm, system failure alarm

With temperature printer, record 7days data.72 hour battery back up for printer and controller display

4units Casters for easy handing

Power supply: 380V /50Hz 3 phase, can change as 220V 60HZ

Standard as 1unit basket

Mixture gas with R134a, R404a, R23, R24, N2, R600a and more, CFC free

Optional: chart recorder, CO2 back up, storage racks, boxes.

Control System:

Microprocessor-based temperature controller, -110℃~-152℃can be set freely , controlling precision is1℃, Digital temperature display.

Keyboard lock and password protected configuration page,Delayed start and safe stop interval between restart and being terminated

Audible and visual alarm: High or low temperature alarm, Power failure alarm,  Low battery alarm,Door open alarm, Filter blocking alarm, system failure alarm.

With temperature printer, record 7days data. 72 hour battery back up for printer and controller display.

Power supply: Normally 380V /50HZ 3 phase, can be changed as 220V 50/60HZ 1phase.

Structure Design:

Chest type, Stainless steel interior, outer is painted steel panel, 4units Casters for easy handing

Rotatable assistant door handle,Top door with key lock.

Two-times foaming technology, double seal design.155mmextra thickness heat insulation.

Optional: Chart recorder, LN2 back up, storage racks/boxes, Remote alarm system.

Refrigeration System:

Imported famous Tecumseh compressor, with Germany EBM Fan motor

Unique refrigeration circulation and unipolar compressor oil-lubricated technology

China Patent technology of mixture refrigerant, which composed of  R134a,R404a,R23,R410A,N2 and so on, CFC free

Certificate: CE, ISO9001, ISO14001,ISO13485
