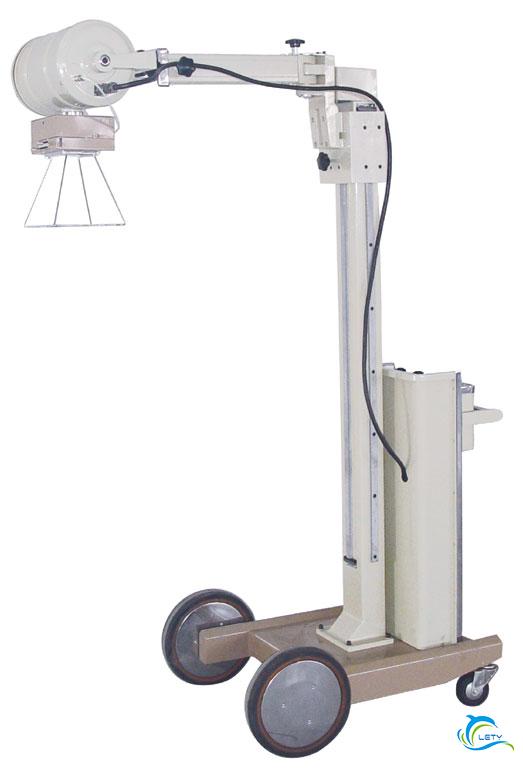

1.Can be used in ward and emergency treatment room for fluoroscopy and radiography.
2.X-ray generator is combined.
3.Single focus, bridge rectification.
4. It is precise, safe, reliable and flexible.
5. Remote control device (control range≥5 m) is used.
MAIN TECHNICAL PARAMETER | ||||||
X-ray generator | Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit. | |||||
Max rated capability | Fluoroscopy | 75kVp,3mA | ||||
Radiography | 90kVp,50mA | |||||
Power supply | Voltage | 180~240V | ||||
Frequency | 50Hz | |||||
Power | not lower than 3.5kVA | |||||
Resistance | not larger than 1Ω | |||||
Voltage adjustment range of x-ray tube | 45~90kVp (divided into 10 steps) | |||||
Range of the timer | 0.08~6.3 s | |||||
Fluorescent screen size | 280mm×350mm | |||||
Distance between the focus to the screen | 620mm | |||||
Tube head carriage movement range | (vertical): 950 mm | |||||
(horizontal): 160 mm | ||||||
X-ray tube focus transverse rotation | ±60° | |||||
Specification of X-ray tube | XD3-3.5/100,Stationary anode, single focus 2.6mm | |||||
Transport dimension,Weight | 1175×870×2050(mm),(NET)150kg/(GROSS)244kg |
