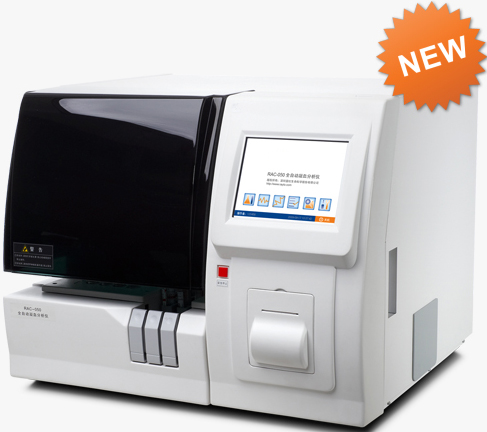

Automated Blood Coagulator Analyzer LT-050

Automated Blood Coagulator Analyzer

Model: LT-050

Features:

1.Random access, smart and compact.

2.Clotting Chromogenic, Immunologic measuring methods.

3.User friendly touch screen interface, simple & easy to operate.

4.High throughput  routine assays.

5.Labor saving ,simple programming and real walk-away system.

6.Reagent open system, close system on request.

7.Multi-language software(optional).

System Function

1.Througput:60 tests/hour for PT

50 tests/hour for PT and APTT

2.Parameters:PT,APTT,TT,FIB,AT-W,PLG

D-Dimer,FDP,etc.

3.Measuring methods:

Clothing:Scattered Light Detection method

Chromogenic:Colorimetric method,405nm

Immunologic:Turbidimetric method,575nm

4.Memory:100,000 test results and 10,000 reaction curves

5.Quality control:12 QC File*10 test items*30 curve

12 month

6.Calibration:6 points*10 items

7.Automatic,Random Access

8.STAT sample priority

9.Auto re-diluent/re-test

10.Barcode-reading support(optional)

Sample Tray

1.Sample tray:27 positions, user-defined STAT

2.Incubation temperature:37+-0.5℃

Reagent Tray

1.Reagent tray:23 positions

2.Reagent cooling:<16℃

Reaction Tray

1.Cuvettes on board:72

2.Min reaction volume:150ul

3.Reaction temperature:37+-0.5℃

Probe

1.With probe pre-heating

2.Automatic washing both inside and outside.

3.With collision protection, liquid level detection and inventory checking.

Print-out

Built-in thermal printer, external printer optional

Measuring and Optic System

1.Light:LED

2.Power:AC 110/240V,50-60+-1Hz

3.Temperature:10℃-30℃,humidity<85%

4.Water consumption:<0.5L/hour

5.Dimension L*W*H(mm):660*580*510

6.Weight:53KG.
