Defibrillator

CE Biphasic cardiac defibrillator

three-step defibrillation process
two-button operation
extensive voice and visual prompts for the operator
biphasic energy output
Product description: Welcome to inquire more information online
INQUIRY

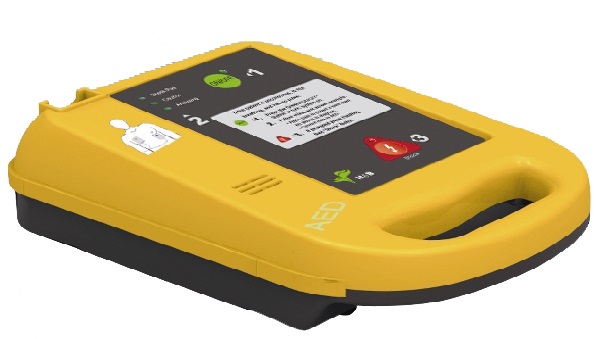

Portable Biphasic AED Defibrillator

LT-AED7000P

Specifications:

1.Daily&Monthly Self-testing
2.Two-button operation, according to the 2010 AHA guidelines
3. Biphasic energy output
4. Extensive voice and visual prompts for the operator

Battery:

Category	Specification
Part No	CR123A-4x2
Non-rechargeable	12V d.c. 2.8Ah
Capacity	100 discharges at 200 Joules or 120 discharges at 150 Joules
Shelf Life (25℃±15℃)	5 years

Physical:

Category	Specification
Dimensions	303 x 216 x 89 mm
Weight	2.0 kg
Operating Temperature	0℃ to 40℃
Operating Humidity	Relative humidity between 30% and 95% (non-condensing)
Storage Temperature(without battery)	-20℃ to 55℃
Storage Humidity(without battery)	Up to 93% (non-condensing)

Electrical Isolation:

Category	Specification
Power	Unit operates on internal battery only
External Electrical	No external devices are attached to the unit
Risk Current Category	Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard)
