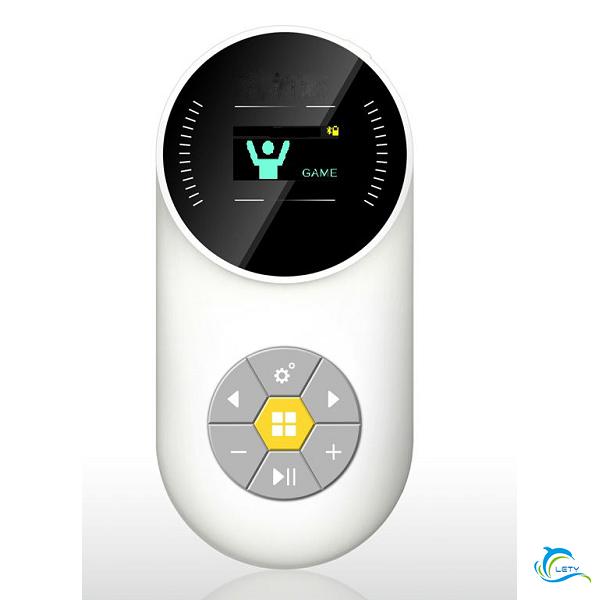

Dysphagia Stimulator

Dysphagia Stimulator

roduct introduction

Dysphagia stimulator is the only clinical rehabilitation with neuromuscular electrical stimulation (NMES), surface electromyography (SEMG), electromyography-induced electrical stimulation (ETS) and biofeedback function (GAME). XY-K-TY is an innovative EMG bioelectrical feedback EMG into neuromuscular stimulation of NMES therapy, which will provide instantaneous assessment and treatment of new technologies.



Product parameter

Model

XY-K-TY-1

Display mode

OLED screen

Treatment mode

Continuous pulse mode

Training method

ETS, NMES, sEMG

*Output program

Unique bluetooth 4.0

Alram function

Low battery warning

Output waveform

Biphase symmetric equilibrium wave

Measurement range

1uV-999uV

Highest resolution

0.2uV

Transmission bands

120-1000Hz(-3dB)

Power supply

DC 7.4V 650Ah

Safety

BF

Protection type

II

Closed current output

1mA

Working current

50-200mA

Working frequency

20-100Hz

Pulse width

50-450us adjustable

Output intensity 0-5mA

Increment 1mA

Output intensity 5-21mA

Increment 0.5mA

Output intensity over than 21mA

Increment 0.1mA



Product feature

- Neuromuscular electrical stimulation (NMES)

Passively stimulate swallowing muscles, intermittent ratio adjustable.

-Surface electromyography (SEMG)

Record EMG signals during therapy to maximize patient potential and provide objective assessment results.

-Electromyography-induced electrical stimulation (ETS)

The combination of active and passive stimulation to stimulate swallowing, increasing muscle strength of swallowing muscula.r

-Biofeedback function (GAME )

Full active game training, providing a variety of biological feedback training, combined with a variety of scenarios to improve patient motivation.
