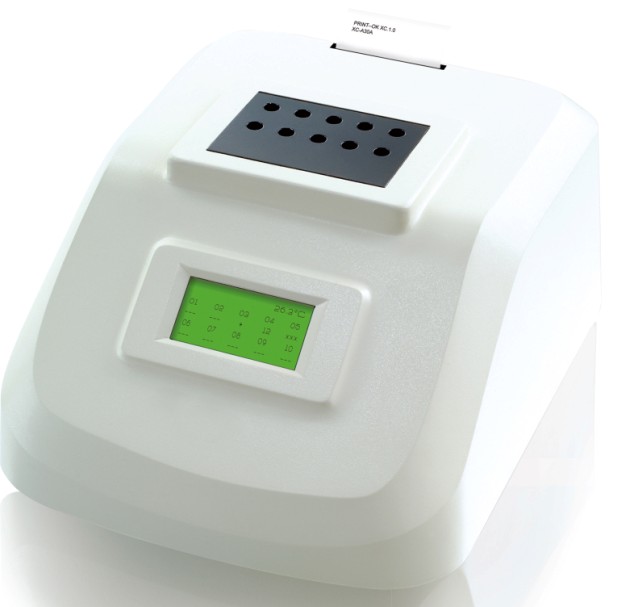

ESR Analyzer / Erythrocyte Sedimentation Rate Analyzer

ESR Analyzer / Erythrocyte Sedimentation Rate Analyzer

Model: LT-ESR-A30A

Features

Infrared optical detection technology

Automatically scanning blood cells and location of the plasma interface from time to time with accurate positioning

Internal thermal printer, ESR curve display and print-out

Automatically amending the ESR results under the detecting temperature (15°C ~32°C)to the ESR values at 18°C, closely related with Westergren results

The results are not interfered by high levels of hemoglobin, bilirubin or triglyceride

Technical Parameters

Measuring principle            Infrared barrier

Measuring time                30 minutes

Measuring precision            <0.2 mm

Reproducibility                < 3%

Temperature Precision      <0.3°C

Sample volumn               <1.6mL whole blood anticoagulant

Reading channel             10

Display                          LCD screen with backlight

Interface                       RS-232 serial port

Print                          Internal thermal recorder

Operation conditions    Temperature  15C°~32°C

Humidity ≤85%

Power supply               AC 220V/110V ±10%, 50/60 Hz

Dimension                  320mm×260mm×158mm (L×W×H)

Net weight                  5.0 kg
