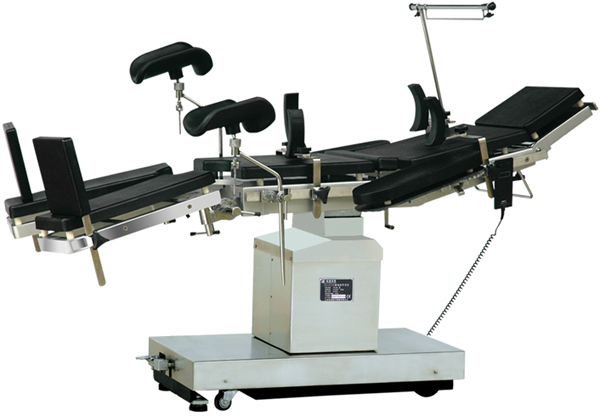

Electric operation table
(electric gear)
Model: OT-DL.B
TECHNICAL SPECIFICATION:
Length:2000±50mm
Width:480±20mm
min-max height:(750-950)±50mm
forward ≥25° backward ≥35°
leftward≥20° rightward≥20°
head board fold upward:≥40° fold downward:≥90°
leg board fold downward:≥90° fold outward:≥90°
back board fold upward:≥45° fold downward:≥20°
waist board lifting: ≥100mm
mains voltage:AC 220V±10% 50Hz
input power:≤150VA
NOTE:
1.Imported Denmark Linak gear engine
2.Do X-ray
3.Up and down movement performed electric
4.Other movements performed manual
DIMENSION (CM):160*80*94
PACKAGE: wooden
G.W. (KG): 277
