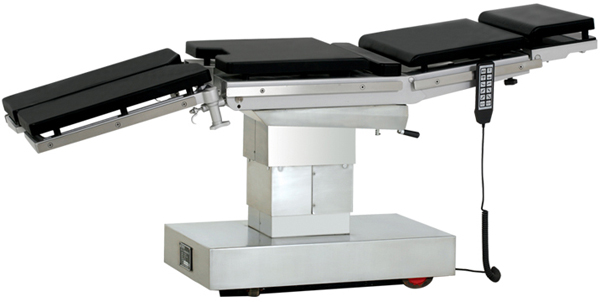

Electric operation table
(electric hydraulic)
Model: OT-D.IA
TECHNICAL SPECIFICATION:
length:2000±50mm
width: 480 ±20mm
min-max height:(550-850)±50mm
forward:≥25° backward:≥15°
leftward:≥15° rightward:≥15°
leg board fold downward:≥90° fold outward:≥90°
back board fold upward:≥75° fold downward:≥20°
head board fold upward:≥30° fold downward:≥90°
waist board lifting:120mm
mains voltage:AC 220V±10% 50Hz
input power:500VA
NOTE:
1.Imported Japan hydraulic engine
2.Impoted electromagnetic valve
3.Impoted sealing ring
4.Ultra-low position for long time operation
5.Do X-ray
6.leg board are separated & dischargeable
7.waist can be lifted
DIMENSION (CM):136.4*78.4*78.3
PACKAGE: wooden
G.W. (KG): 322
