Operation table

  • Electric operation table (electric hydraulic) OT-D.III
Electric operation table (electric hydraulic) OT-D.III

Electric operation table (electric hydraulic) OT-D.III

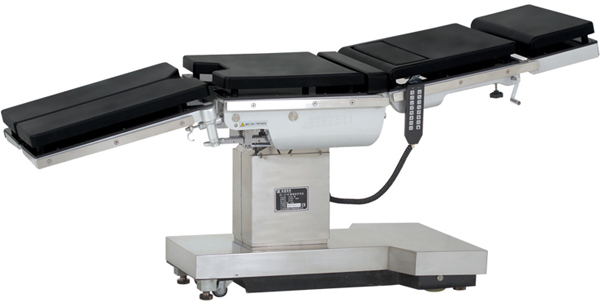

Electric operation table

(electric hydraulic)

Model: OT-D.III



TECHNICAL SPECIFICATION:

length: 2000±50mm

width:  500±20mm

min-max height:(750-1150)±50mm

forward:≥30°   backward:≥30°

leftward:≥20°  rightward:≥20°

horizontal and longitudinal movement:350mm

leg board fold downward:≥90°  fold outward:≥90°

back board fold upward:≥70°   fold downward:≥45°

head board fold upward:≥40°   fold downward:≥90°

waist board lifting ≥100mm

mains voltage:AC 220V±10%  50Hz

input power:400VA



NOTE:

1.Imported Germany hydraulic engine

2.Imported electromagnetic valve

3.Imported sealing ring

4.AC/DC

5.Auto restoration

6.Do X-ray&C-arm



DIMENSION (CM):136.4*78.4*99.3

PACKAGE: wooden

G.W. (KG): 360
