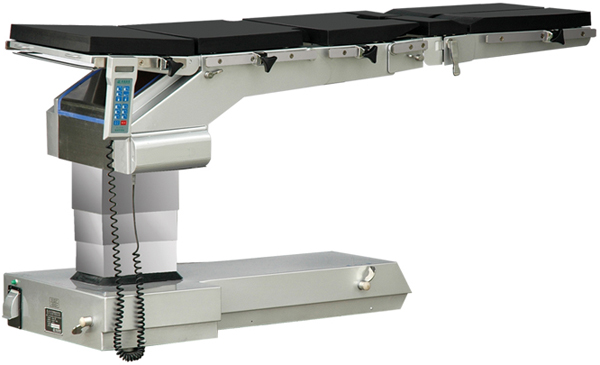

Electric operation table electric hydraulic OT-D.IV

Electric operation table electric hydraulic OT-D.IV

Electric operation table

(electric hydraulic)

Model: OT-D.IV


TECHNICAL SPECIFICATION:

length:          2000±50mm

width:           500±20mm;

min-max height:  (740-1100)±50mm

forward: ≥ 25°    Backward: ≥ 25°

leftward: ≥15°    Rightward: ≥ 15°

head board      Upward: ≥ 25°    Downward: ≥ 25°

seat board       Upward: ≥ 70°    Downward: ≥ 45°

leg board        Upward: ≥ 15°    Downward: ≥ 60°

foot board       Downward:≥75° angel of furcation:≥180°

mains voltage:    AC220 50HZ

accumulator Cell: 12V 12Ah

input power:      500VA



NOTE:

1.Imported Germany hydraulic engine

2.Auto restoration

3.Hand/panel control

4.Self-lock

5.Avoid error-touch

6.AC/DC

7.Imported electromagnetic valve

8.Imported sealing ring

9.Imported sensor

10.Do X-ray&C-arm

11.Head-leg part exchange



DIMENSION (CM): 151.4*86.4*102.3

PACKAGE: wooden

G.W. (KG): 415
