Electrolyte Analyzer

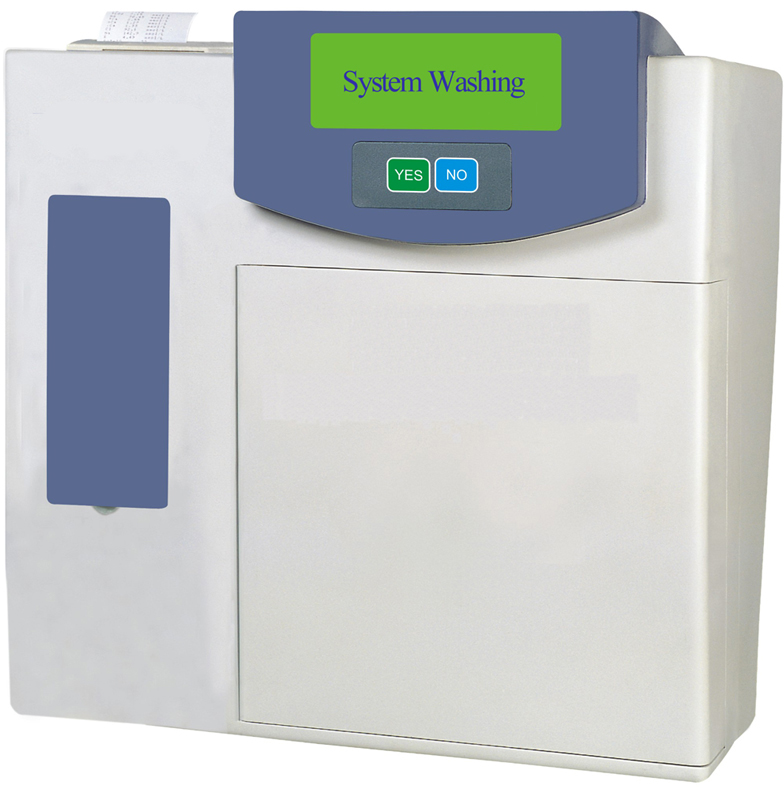

Electrolyte Analyzer IMS-972

7” Color touch screen, easy to operate
High accurate and long life electrode and TCO2 sensor
Programmable multi-format print-out
Up to 50,000 test results can be stored
Product description: Electrolyte Analyzer
INQUIRY

Electrolyte Analyzer

Type A: K, Na, Cl

Type B: K, Na, Cl, TCO2

Type C: K, Na, Cl, iCa, nCa, TCa, pH

Type D: K, Na, Cl, iCa, nCa, TCa, pH, TCO2, Ag

Type E: K, Na, Li,

Type F: K, Na, Cl, Li

Type G: K, Na, Cl, Li, TCO2

Type H: K, Na, Cl, iCa, nCa, TCa, pH, Li

Type I : K, Na, Cl, iCa, nCa, TCa, pH, Li, TCO2, Ag

Technical characteristics

● The whole running process of the equipment is controlled by acomputer.Also,automatic electric potential tracking and correcting software are adopted to ensure its stable performance.

● There are only two press button(i.e YES and NO)on the equipment while the menu is completely in English. Once there is a failure,the equipment will automatically prompt and remove it. It is really convenient.

● The machine adopts innovative international patent technology such as wave theory flushing method and direct flushing pipe method to avoid block and crossed contamination.

● Every time putting the specimen into the machine,the machine could simultaneously detect eight ions including K,Na,Cl,iCa,nCa,TCa,pH,Li,TCO2,AG as well as ten parameters.

● It can absorb the specimen and calibrate the ion automatically,and make analysis quickly. It only takes 25s to finish the process of absorbing the specimen to indicating the result.

● After conducting analysis to specimens,the equipment will automatically flush,keeping the electrode standby in clean status.

● It has a ultra large screen with completely English display,which is quite clear for operators . The built-in printer can print out the result , so it's very quick and convenient.

● The equipment is set with quality control correction procedure,and capable of correcting measured data automatically,as well as by the two parameters of pith and average deviation.

● The equipment is capable of storing 1000 result, and it can be extended to be more than 10000.The equipment will automatically refresh once it reaches the store limit.

● Our services offices are distributed all over the nation. Users are regularly visited, and their problems as well worries will be removed.

Measuring parameters

	Measuring ranges	Resolution	CV%
K+	0.50-15.00 mmol/L	0.01 mmol/L	≤1.0%
Na+	30.0 -200.0 mmol/L	0.1 mmol/L	≤1.0%
Cl-	20.0 -200.0 mmol/L	0.1 mmol/L	≤1.0%
Ca++	0.10-6.00 mmol/L	0.01 mmol/L	≤1.5%
Li+	0.10-5.00 mmol/L	0.01 mmol/L	≤2.0%
pH	4.00-9.00	0.01	≤0.5%
TCO2	2.0 -70.0 mmol/L	0.1 mmol/L	≤3.0%

Technical specifications

Measuring time	≤25~90s（Type A~Type I，Time for sampling, measuring, washing and printing）
Sample size	60~300μl（Type A~Type I，optional）
Applicable specimens	blood serum,blood plasma,whole blood,cerebrospinal fluid and dilute urine
Data storage	1000
Automatic sampling	No
Display	LCD
Operating mode	YES\NO button
Print	ntemal graphic thermal printer
Air bubble test	Yes(optional)
Alarm for waste liquid overflow	Yes(optional)
Alarm for standard liquid level	Yes(optional)
Barcode scanning	No
CPU	16bit
communication interface	RS232
Online software	NO
Working condition	Temperature: 5℃～35℃ Relative humidity ≤80%
Power	AC220V±20；50Hz±1Hz
Weight	12kg(Host machine）
