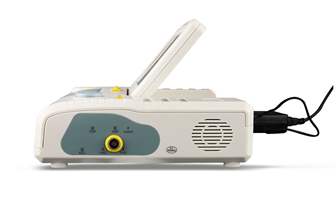

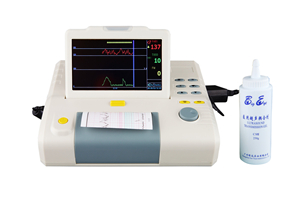

7" Fetal Monitor LT9000E

  • 7" color TFT screen
  • Built-in high dot matrix thermal printer with long life
  • Auto fetal movement are available
  • More than 12 hours data storage
  • Product description: Welcome to inquire more information online
Fetal Monitor

Compact and lightweight design
7" color TFT screen, folding 90 degrees
Built-in high dot matrix thermal printer with long life
A standard patient event marker and a clinical event marking button to mark clinical events separately.
Auto fetal movement are available.
Multi-crystals, wide beam forming, high sensitivity ultrasound transducer, low ultrasound power
AC or Li-ion battery
More than 12 hours data storage, which can be recalled and reprinted.

Technical Specifications

Fetal Heart Rate             Multi-crystal,pulsed doppler,high sensitive
Transducer Strengh           <5mW/cm2
Working frequency             1.0MHz
Signal processing             special DSP system and mode recognization
Measurement range             50~210 bpm

Alarm Range: High:   160    170    180    190 bpm
Low :   90    100    110    120 bpm

The largest audio output power     1.5W


Measurement range              0~100units
Battery working time           2 hours(no printer working)
Speaker                        1W
Power Supply                   AC 220V±20%,50Hz  or 8.4V Li-battery
Power consumption              <20W
Working Environment            Temperature:    10~40 ℃,        RH: 10~80%

Transducer Acoustic Output     Under the requirements laid down in IEC 1157, 1992, the peak negative acoustic pressure does not exceed 1Mpa. The output beam intensity                                does not exceed 20mW/cm2 and the spatial-peak temporal-ave rage intensity does not exceed 100mW/cm2

Dimension 295W×240D×73H×mm
Net weight 1.75kg

Standard: FHR, TOCO, FM
Optional: Twins,FAS(Fetal acoustic simulator)
