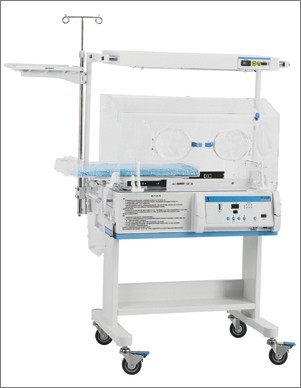

Infant Incubator LT-P100AB

Infant Incubator

Model: LT-P100AB

■Based on MCF-P100A, MCF-P100AB is configured with fixed Neonate Bilirubin Phototherapy Equipment model: XHZ-90 (with blue fluorescent lamps)
■Based on MCF-P100A, MCF-P100AB is configured with fixed Neonate Bilirubin Phototherapy Equipment model: XHZ-90L (with LED bulb) as optional.

General Information:

Air mode control，

set temperature and air temperature are displayed separately;

Tri-safety over-temp protection:

    Double CPU control system.

    Isolated over heating cutoff device.

Humidity by natrual way.

With self-checking function, various failt fault faiture alarms

With temperature data storage function

RS-232 connector.

Add a side door to this premature Infant incubator, the infant bed can be pulled out from the side door.

Optional configuration of the Infant incubator: DC motor with low noice

Specification:

Power supply: AC220V-230V/50Hz

Max power output: 850VA

Mode of control: Air mode controlled by micro-computer

Air temperature control range: 25℃-37℃

Temperature variability: ≤0.5℃

Temperature uniformity: ≤0.8℃

Noise inside hood: ≤55dB(A)

(Environment noise≤45dB(A))

Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on.

Environmental temperature:

Operating range: 20℃-30℃

(Set temperature should be higher 3℃than the environment temperature )

Ambient air movement rate: ＜0.3m/s
