Traction Therapy

  • Lumbar And Cervical And Traction Table

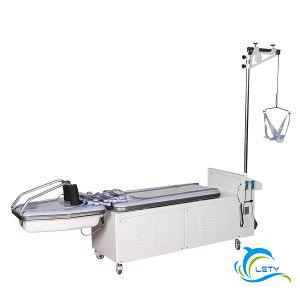

Lumbar And Cervical And Traction Table

Lumbar And Cervical And Traction Table

1.Definition:

The stretching technology takes advantage of the external force (manpower or mechanical/electrical equipment) to stretch the shortening or contracture tissue to prolong it, and take slight exercises exceeding the tissue resistance and within the range of joint motion. The therapy is aimed to obtain the extensibility of the soft tissue around the joint, decrease the muscle, improve and recover the activity range of the joint.



Therapeutical effects of traction: protrusion of lumbar intervertebral disc, lumbar spondylolisthesis, lumbar vertebral degeneration, lumbar small joint disturbance, lumbar small joint synovium incarceration, early ankylosing spondylitis, uncomplicated spine compressive fracture without and so on.


2.Product parameter

Model number

JYZ-IIIB(LED)

JYZ-IIIB(LCD)

Power supply

220V ± 22V 50Hz ± 1Hz

220V ± 22V 50Hz ± 1Hz

Rated input power

100VA (tolerance ± 15%)

100VA (tolerance ± 15%)

Lumbar traction stroke

0 ~ 200mm

0 ~ 200mm

Lumbar traction total time

0 ~ 99min adjustable

0 ~ 99min adjustable

Lumbar traction

0 ~ 990N adjustable

0 ~ 990N adjustable

Continuous traction time

0 ~ 9min adjustable

0 ~ 9min adjustable

Intermittent time

0 ~ 9min adjustable

0 ~ 9min adjustable

Cervical traction

0 ~ 300N adjustable

0~ 300N adjustable

Cervical traction stroke

0 ~ 300mm

0 ~ 300mm

Cervical traction total time

0 ~ 99min adjustable

0 ~ 99min adjustable

Angular range of action

-10 ° ~ +30 °

-10 ° ~ +30 °

Rotation range

about 25 ° left and right adjustable

About 25 ° left and right adjustable

Waist hyperthermia temperature

≤ 50 ℃

≤ 50 ℃

LCD display window

No

Yes


3.Product advantage

* The three-dimensional traction can be longitudinal traction, upper corner traction and below corner traction, automatic swing lateral traction, the above-mentioned three functions may be used singly or in combination;

* With 8 different traction modes in total, and the traction owns the automatic compensation function (slow traction function);

* 20 kinds of therapeutic schedules are stored and read;

* Medical record management function, storage function, medical history printing function;

* The cervical traction is controlled by the computer, the emergency control reseater is held by the patient, both duration and force are controlled by the program, with the automatic protection function when the lumbar tractive effort is excessive, and fully realizes automation;

* Several safety designs (maximum traction is 990N, emergency reset line switch for the patient, and operation emergency existing key for the medical staff).
