Ultrasound machine

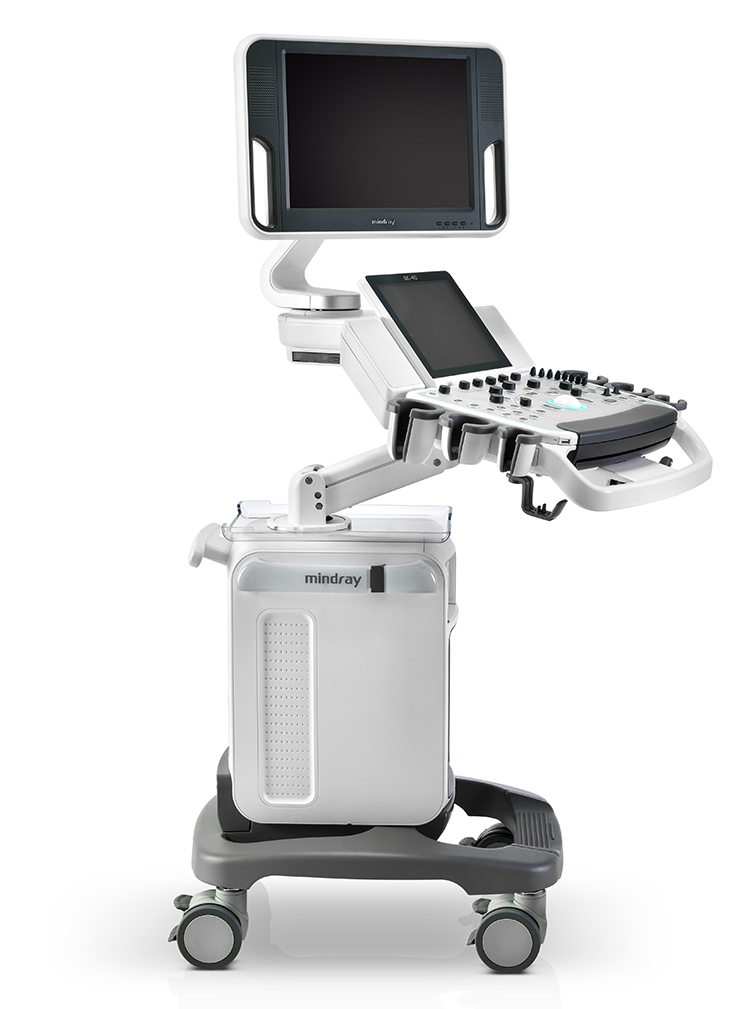

Mindray DC-40 Color trolley ultrasound

15''/17‘’ LED monitor with 180° rotational angle
10.4'' touch screen with adjustable angle

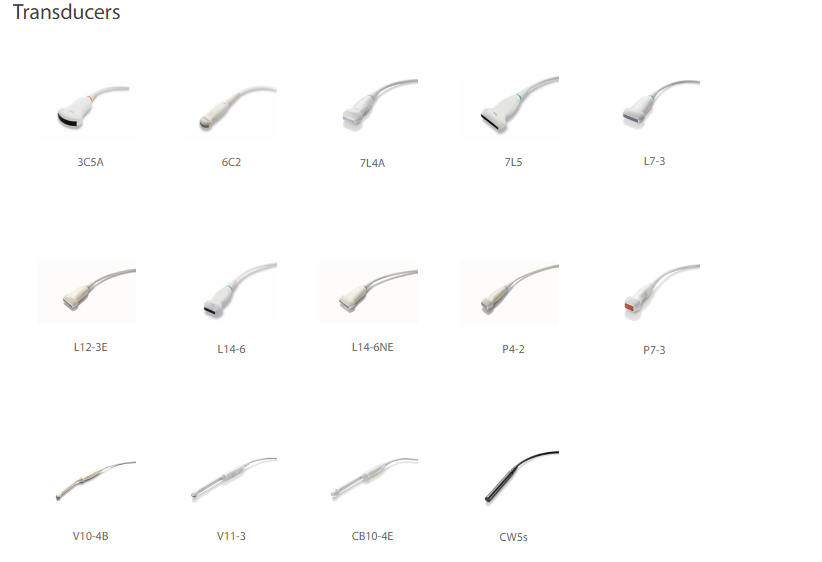

4 active transducer sockets
Dedicated endocavity transducer holder
Product description: If you want to inquire Mindray brand other ultrasound, please send us inquiry directly.
INQUIRY

Mindray DC-40 Color trolley ultrasound

Performance
PSHTM (Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

iBeamTM

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

iClearTM

· Gain improved image quality based on auto structure detection
· Sharper & Continuous Edges
· Smooth Uniform Tissues
· Cleaner ‘no echo areas’

Multiple Beam Formation

Maximum 4 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

Natural Touch Elastography

Based on Mindray’s latest patented technology, natural touch elastography reduces dependence on user operation technique, improving operator’s reproducibility for higher clinical utility.
· Higher stiffness sensitivity
· Good stability and reproducibility

iScapeTM

Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.

UWN (Ultra-Wideband Non-linear) Contrast Imaging

Mindray’s unique contrast imaging technology, utilizing contrast agent characters with both 2nd harmonic and non-linear fundamental signal to get improved S/N ratio for better diagnostic details and longer contrast agent duration for better observation.

ExFOV

Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes.

B-SteerTM

Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.

Free Xros MTM

Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.

Free Xros CMTM

Accurately evaluate myocardial motion at different phases, and simultaneously determine myocardial synchronization. Higher frame-rate providing you with accurate results.

TDI & TDI QA

he Tissue Doppler Imaging (TDI) allows you to quantitatively evaluate local myocardial movement and function, with quantitative velocity parameter in TDI QA.

Workflow
iScanHelper

Dedicated inbuilt tutorial software
· Anatomical diagram illustrations including schematic and ultrasound picture

· Standard ultrasonogram comparison with real-time scanning

· Scanning reference picture demonstrating appropriate patient position and probe placement

· Tips on scanning skills and diagnostic information

Auto IMT

Auto measurement of anterior and posterior wall thickness providing accurate carotid status.

Auto LV

Simple measurement procedure for left ventricle, enhanced by auto-trace functionality and easy manual correction.

Raw Data

Enables optimum flexibility for post processing of the stored images including parameter adjustments, adding comments and measurements, allowing maximum productivity during scanning.

iZoomTM

Gain instant full screen view on the click of a single key.

iTouchTM

Gain instant auto image optimization in B, Color and PW Modes on the click of a single key.

iStorage / iMeasurement / iReport

· iStorage: Directly transfer images and reports to PC via network cable
· iMeasurement & iReport: Offline PC software for user-defined measurement table, formula calculation and report template

iStationTM

Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.

MedSight

DC-40 lets you transfer clinical images and cine to your IOS or android powered smart device via an interactive app. With MedSight you can now take the clinical examinations with you wherever needed.

Ergonomics

· 15''/17‘’ LED monitor with 180° rotational angle
· 10.4'' touch screen with adjustable angle
· DVD-RW drive and USB ports
· Rotatable and height adjustable control panel
· Retractable QWERTY keyboard
· Cable management design
· 4 active transducer sockets
· Gel warmer
· Dedicated endocavity transducer holder
· Built-in battery supporting real-time scanning

Clinical Images
