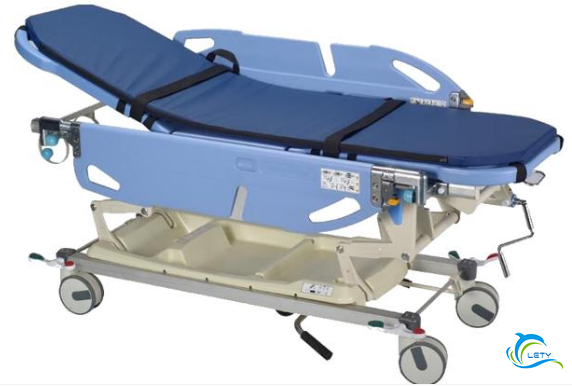

Technical parameters: LT-208B1
Bed board length: ≥ 1900mm
Full width less than: 0-680mm
High and low lifting range: 0-300mm
Back lift: 0 ~ 75 °
High and low lift: 550 ~ 880mm
The back plate lift is controlled by a pneumatic spring: 0-75 degrees, stepless operation
High and low lift system: the linkage mechanism that is telescopic through the manual adjuster
1. The steel body of the car body is sprayed, the bed plate is made of PP resin material once, and the three-section bed frame frame: the whole frame is made of steel material/part of aluminum material; the bedside guardrail can be fixed horizontally, which is convenient for spotting and puncture. 10Kg.
2. Two-stage tray: The tray is divided into two parts with different sizes and depths. It has 6 leaking holes, which is easy to use and bears 10kg.
3. Roller: The central control lock double-sided wheel, four imported rollers with diameter ≥150 mm, and the central locking pedal should be installed at the four corners of the cart.
4. Independent center fifth round system: It should be equipped with an independent center fifth wheel system, and the operating pedals are installed on both sides of the cart.
5. Side guard plate: The guard plate made of PP resin material is installed on both sides of the cart, which can be fixed horizontally with safety setting; the side guard plate is provided with an angle display, which can show the angle of the back plate raised, and is concave. Groove to prevent the infusion tube from slipping
6. Transfer mattress: waterproof fabric processing, zipper on the side, external fabric can be washed, can effectively eliminate the static electricity generated during the transfer process;
7. Infusion stand jack: There is an infusion stand jack at each corner of the cart, and the infusion stand can be fixed in the jack. Standard infusion stand, with infusion stand collection hole
8. The car adopts the international advanced central control brake system, which is stable and reliable. The car surface is a split structure. The upper body adopts the imported steam spring as the supporting force source, which is easy and convenient to operate.
