Endoscope

  • Portable USB Flexible Video Ureteroscope with CMOS 1,00,000 pixels and USB Colonoscope endoscope can provide OEM
Portable USB Flexible Video Ureteroscope with CMOS 1,00,000 pixels and USB Colonoscope endoscope can provide OEM

Portable USB Flexible Video Ureteroscope with CMOS 1,00,000 pixels and USB Colonoscope endoscope can provide OEM

  • Flexible Video Ureteroscope
  • USB Colonoscope endoscope
  • Portable USB Flexible Video Ureteroscope
  • USB Flexible Video Ureteroscope
  • Product description: Portable USB Flexible Video Ureteroscope with CMOS 1,00,000 pixels and USB Colonoscope endoscope can provide OEM
  • INQUIRY

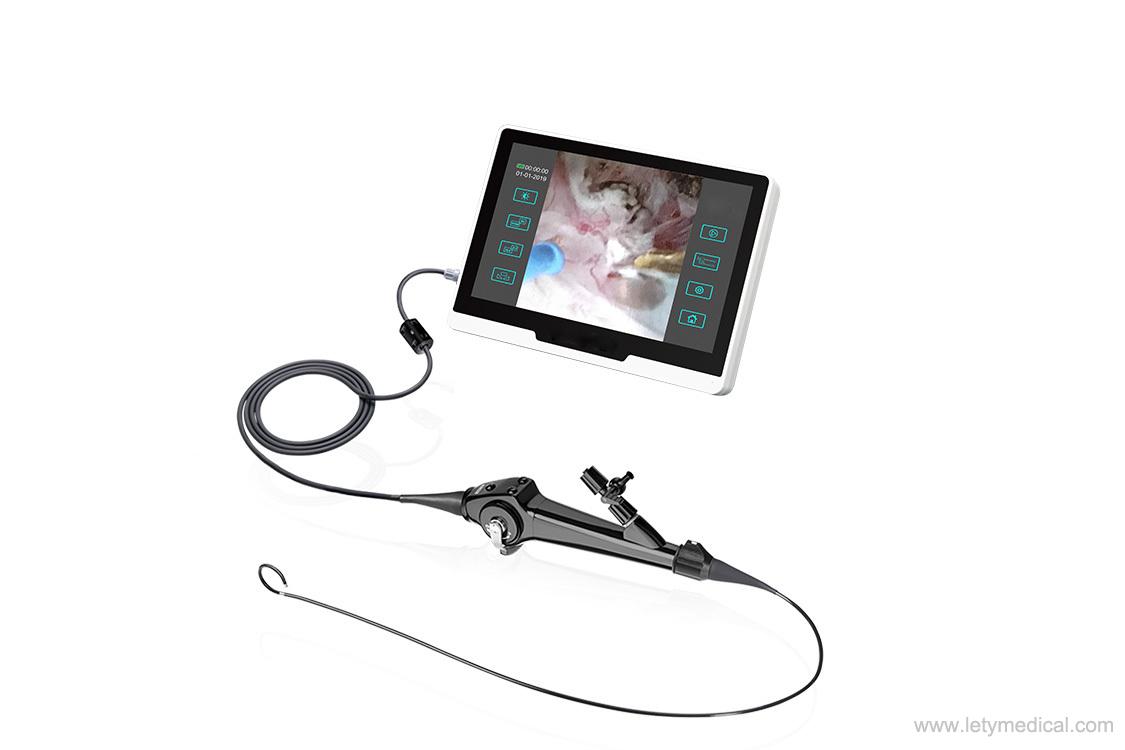

Flexible Video Portable USB Ureteroscope endoscope /ENT/Cystoscope /Bronchoscope

Portable USB Flexible Video Ureteroscope with CMOS 1,00,000 pixels and USB Colonoscope endoscope can provide OEM



Item ENT Cystoscope Bronchoscope Ureteroscope
Diameter of distal- end Φ2.8mm
Diameter of insert tube Φ2.8mm
Clamp aperture Φ1.0mm
Working length 410mm 380mm 530mm 600mm
Total length 670mm 640mm 890mm 960mm
View of field 85°
Depth of view 3-50mm
Resolution CMOS 300,000 pixels
Tip deflection Up160° down 130°
Remark We can provide OEM service, technical details can be customized.





Flexible endoscope package list

Portable scope

set 1

Leak detector

set 1

Biopsy forceps

pc 2

Cleaning brush

pc 2

Attract valve anti jet cover

set 2

Endoscope case

set 1

Water bottle

set 1

USB line

set 1

Certificate

pc 1

User manual

pc 1





Other Model

Portable USB Flexible Video Gastroscope endoscope USB Colonoscope endoscope

Model: LTE-GA9826

Portable USB Flexible Video Ureteroscope with CMOS 1,00,000 pixels and USB Colonoscope endoscope can provide OEM

Portable USB Gastroscope endoscope



Flexible Video Portable USB Ureteroscope endoscope with CMOS 1,00,000 pixels and USB Colonoscope endoscope can provide OEM

Diameter of distal- end

Φ9.8mm

Diameter of insert tube

Φ9.6mm

Clamp aperture

Φ2.8mm

Working length

1030mm

Total length

1330mm

View of field

140 º

Depth of view

3-100mm

Resolution

CMOS 1,000,000 pixels

Tip deflection

Up180° down 90° L/R 100°

Remark

We can provide OEM service, technical details can be customized.

Portable USB Colonoscope endoscope





Flexible Video Portable USB Ureteroscope endoscope with CMOS 1,00,000 pixels and USB Colonoscope endoscope can provide OEM

Diameter of distal- end

Φ13.0mm

Diameter of insert tube

Φ12.8mm

Clamp aperture

Φ3.8mm

Working length

1350mm

Total length

1650mm

View of field

140 º

Depth of view

3-100mm

Resolution

CMOS 1,000,000 pixels

Tip deflection

Up180° down 180° L/R 160°

Remark

We can provide OEM service, technical details can be customized.



Characters:

Gastroscope

Bending operation : Traction chain structure, whole sealed waterproof Image display : Two image display optional

Split machine : Main part and light source are splited Quality certification : CE

Warranty : One year(free), permanent repairs (not free) Package size :64*18*48cm (G.W.:5.18kgs)
