Spectrophotometer

UV/VIS Spectrophotometer

Optical System: Single beam, Grating 1200 lines/mm
Wavelength Range: 190-1100nm
Bandwidth: 2nm
Wavelength Accuracy: ±0.5nm
Product description: Welcome to inquire more information
INQUIRY

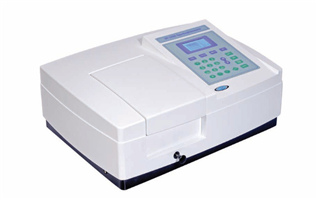

UV/VIS Spectrophotometer

LT-UV-5500(PC)

Features

※ Large LCD screen(128x64Dots).Can display total 200 groups of data,

5 groups per screen. Can display standard curve and the curve equation.

※ Can save 200 groups of curve equation. Convenient for check and reload.

※ Data can be restored after a sudden power cut.

※ Auto setting wavelength. Auto zero and blank.

※ Tungsten lamp & deuterium lamp can be turned on/off individually to extend lifetime.

※ The Metash application software UV-Professional provides complete control of the spectrophotometer from a computer through the Built-in USB port. The following functions can be easily achieved: Quantitative, Kinetics, Wavelength Scan, DNA/Protein Test and Multi-wavelength Test.

※ The flange of the D2 lamp makes it become true Pre-aligned design makes it convenient to change lamps.

※ Large sample compartment, It can accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories are under your choice.

Model	UV-5500(PC)
Optical System	Single beam, Grating 1200 lines/mm
Wavelength Range	190-1100nm
Bandwidth	2nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	0.3nm
Wavelength Setting	Auto
Photometric Accuracy	±0.5%T
Photometric Repeatability	0.3%T
Photometric Range	-0.3-3A,0-200%T,0-9999C
Stability	± 0.002A/h @ 500nm
Stray Light	≤0.1%T
Data Output Port	USB
Printer Port	Parallel Port
Display	128*64 Dots LCD
Lamps	D2 Lamp & W Lamp
Detector	Silicon Photodiode
Power Requirements	AC 220V/50Hz or 110V/60Hz
Dimension	460360225mm
Weight	18kg
