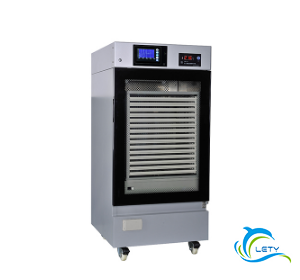

XHZ-IV platelet constant temperature oscillation storage box

XHZ-IV platelet constant temperature oscillation storage box

XHZ series platelet constant temperature oscillation storage box is a platelet preservation equipment independently designed and produced by our factory in 1994. It is suitable for blood supply units such as blood center, central blood station, hospital blood transfusion department and blood bank.

At present, there are four models of XHZ-IV, XHZ-IB, XHZ-IIB and XHZ-IIIA, which are distributed in blood centers, blood stations, People's Liberation Army Hospitals and hospitals all over the country. They are also exported to Southeast Asia and South America.

Features:

More advanced design, more stable temperature control, more reliable performance;

Intelligent control management system with uniform temperature control and reliable performance;

LCD touch screen, Chinese and English color interface, switch freely;

Automatic display of temperature curve changes, convenient for users to check the instrument operation record;

Large capacity record storage for data traceability and quality management;

Heat-reflective coated tempered glass door for effective sound insulation and heat insulation;

The new non-slip coated drawer shelf effectively prevents platelets from slipping off;

Imported motor, continuous operation without noise, stable oscillation, excellent performance

Two sets of independent sound and light alarm systems, automatic pop-up windows to prompt the alarm content, click to eliminate the alarm;

Self-diagnose fault information and pop-up window display, which is convenient for users to quickly eliminate faults;

Imported original battery, maintenance-free for a long time, can record the real-time temperature in the box under power failure;

LED lighting design for easy observation of internally stored items;

USB data export interface, convenient for user information management;

The operation authority can be preset to realize hierarchical management of operation authority;

Data wireless transmission function (real-time temperature, oscillation).

Optional features:

SMS messaging function (optional).

The main technical parameters:

Temperature control range: 22.0 °C ± 1.0 °C

Display accuracy: 0.1 ° C

Alarm temperature: <20°C, >24°C

Oscillation amplitude: 50mm ± 5mm

Oscillation frequency: 60 times / minute

Oscillation mode: continuous reciprocating (left and right), horizontal oscillation

Ambient temperature: 5 ° C ~ 35 ° C

Dimensions: 670 × 700 × 1370 (width × depth × height)

Machine weight: 150kg
