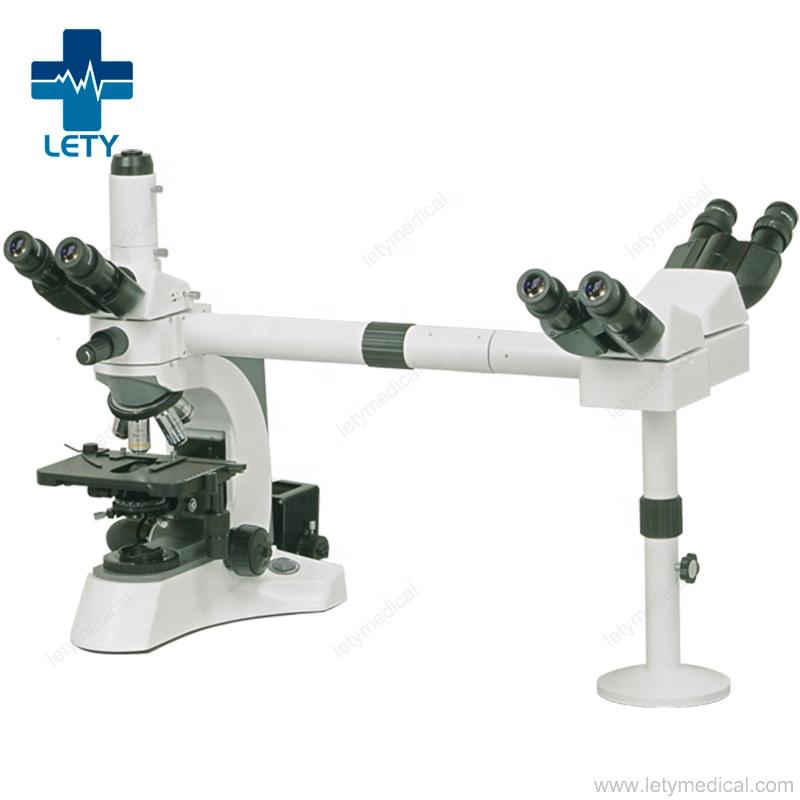

Multi-Viewing Microscope
Product description: Multi-Viewing Microscope Many people look at high quality biological microscopes Microscope for 3people 5 people
INQUIRY

Many people look at high quality biological microscopes look at microscopes

Model: LTL-N+

Multi-viewing microscopes allow people to observe specimen at the same time.

With the features of infinite optical system, effective illumination, LED pointer and images

coherence, it is widely used in clinic, scientific research and teaching demonstration.

Technical specifications
Optical System	Infinite Optical System
Viewing Head	1 Piece Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm
Viewing Head	1 Pieces Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm
Eyepiece	4 Pieces Extra Wide Field Eyepiece EW10×20
Nosepiece	Inverse Quintuple Nosepiece
Objective	Infinite Plan Achromatic Objective 4×,10×,40×,100×
Condenser	Swing Condenser N.A.0.9/ 0.25
Focusing	Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm
Stage	Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
Kohler Illumination	External Illumination, Halogen Lamp 24V/ 100W
Pointer	Green LED Pointer , Brightness Adjustable
Pointer	Two Color LED Pointer , Brightness Adjustable
Photo Attachment
Video Adapter	C Mount 1×
Video Adapter	C Mount 0.5×

Technical specifications
Optical System	Infinite Optical System
Viewing Head	1 Piece Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm
Viewing Head	2 Pieces Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm
Eyepiece	6 Pieces Extra Wide Field Eyepiece EW10×20
Nosepiece	Inverse Quintuple Nosepiece
Objective	Infinite Plan Achromatic Objective 4×,10×,40×,100×
Condenser	Swing Condenser N.A.0.9/ 0.25
Focusing	Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm
Stage	Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
Kohler Illumination	External Illumination, Halogen Lamp 24V/ 100W
Pointer	Green LED Pointer , Brightness Adjustable
Pointer	Two Color LED Pointer , Brightness Adjustable
Photo Attachment
Video Adapter	C Mount 1×
Video Adapter	C Mount 0.5×

Technical specifications
Optical System	Infinite Optical System
Viewing Head	1 Piece Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm
Viewing Head	4 Pieces Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm
Eyepiece	10 Pieces Extra Wide Field Eyepiece EW10×20
Nosepiece	Inverse Quintuple Nosepiece
Objective	Infinite Plan Achromatic Objective 4×,10×,40×,100×
Condenser	Swing Condenser N.A.0.9/ 0.25
Focusing	Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm
Stage	Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
Kohler Illumination	External Illumination, Halogen Lamp 24V/ 100W
Pointer	Green LED Pointer , Brightness Adjustable
Pointer	Two Color LED Pointer , Brightness Adjustable
Photo Attachment
Video Adapter	C Mount 1×
Video Adapter	C Mount 0.5×
