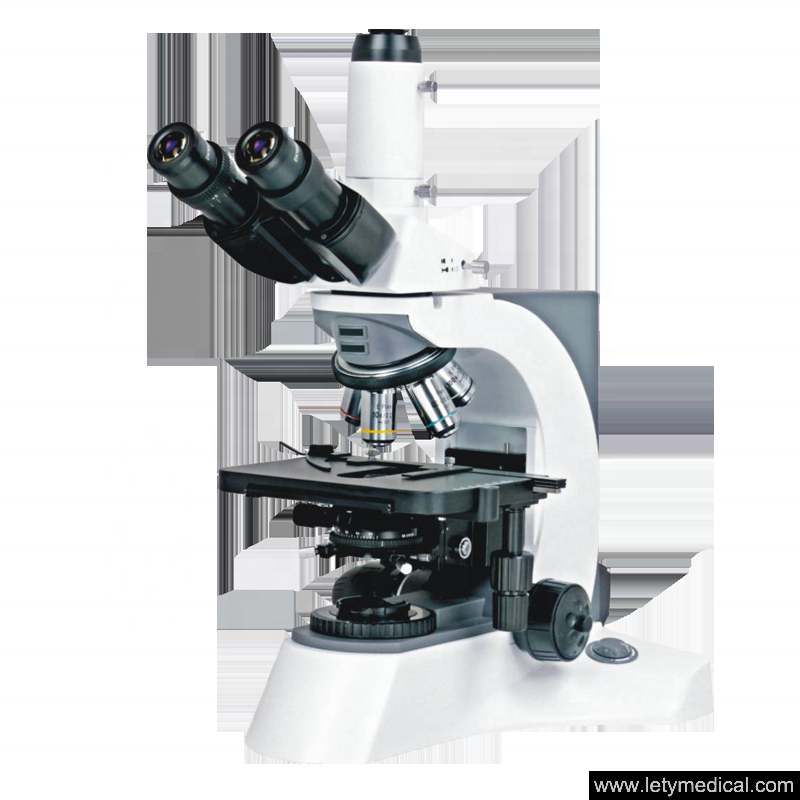

Laboratory/Medical LED Biological Binocular Microscope with high quality
Model: LTL-800M
With Infinite optical system, kohler illumination, providing excellent optical quality and making image perfect.
With low and forward position coaxial focus system, focusing knobs and brightness
adjustable knob within reaching location, stable integral structure, reasonable ergonomic design, making operator feel more comfortable and effective.
With Innovatory Optical and Structure Design Idea, N-800M Laboratory Biological Microscope Makes Laboratory Work Enjoyable.
Technical specifications | |
ptical system | Infinite Optical System |
Viewing Head | Seidentopf Type Trinocular Head , Inclined at 30°,Interpupillary 48-75mm |
Tiltable Binocular / Trinocular Head | |
Eyepiece | Extra Wide Field Eyepiece EW10×/23,Eyepiece Tube Diameter 30mm |
Nosepiece | Backward Quintuple Nosepiece |
objective | Infinite Plan Achromatic Objective 4×,10×,40×,100× |
Infinite Plan Achromatic objective 20×,60× | |
Plan s-Apo Objective 4x,10×,20×,40×,100× | |
Condenser | NA0.9/0.25 Swing Condenser N.A.0.9/0.25 |
Focusing | Coaxial Coarse and Fine Adjustment,Fine Division 0.001mm |
Stage | Double Layers Mechanical Stage 185×142mm,Moving Range 75×55mm |
Kohler llumination | External lllumination,Asperical Collector,Halogen Lamp 6V/ 3ow |
External lllumination,Asperical Collector,Halogen Lamp 24V/10ow | |
LED Illumination,3W or 5w | |
Photo Attachment | |
Video Adapter | C Mount 1x |
C Mount 0.5x | |
Polarization Attachment | |
Turret Phase Contrast Kit | |
Dark Field Attachment | Dark-field Condenser(Dry) |
Dark-field Condenser(oil) | |
Epi-Fluorescent Attachment | Mercury lamp or LED lllumination |
