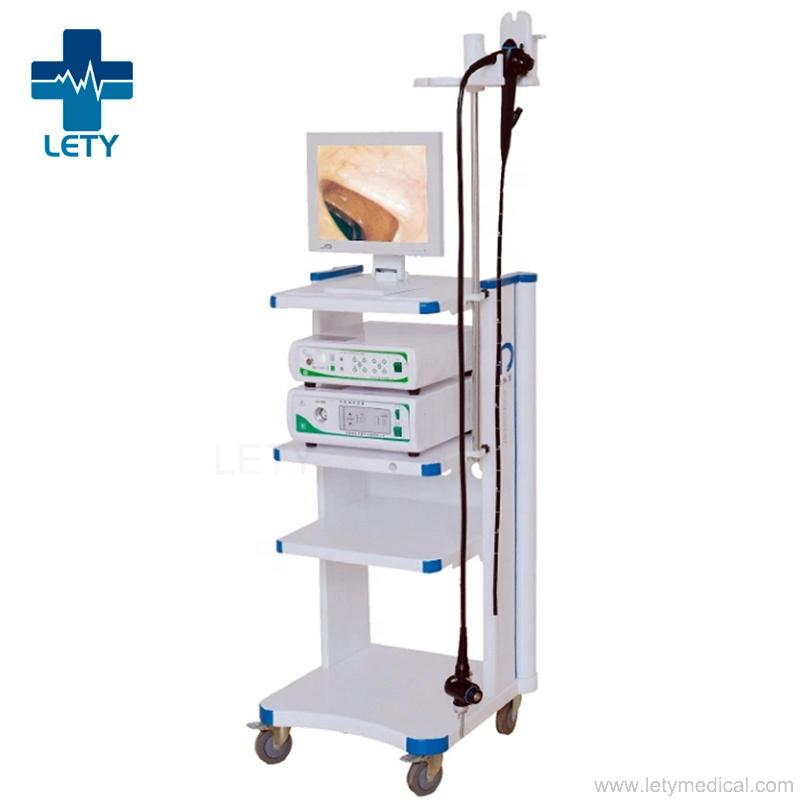

Endoscope

Flexible Video Endoscope camera Gastroscope Colonoscope Share One Set Video fiber optic endoscope Endoscope camera system

Endoscope camera
Colonoscope
fiber optic endoscope
Product description: Flexible Video Endoscope camera Gastroscope Colonoscope Share One Set Video fiber optic endoscope Endoscope camera system
INQUIRY

Hottest Flexible Video Endoscope Gastroscope Colonoscope Share One Set Video Center
LTS-V115

Quick Details:
Endoscope Gastroscope
1. Place of Origin: China
2. Brand Name: ICLEAR
3. Model Number: EMV-200 & EMV-400
4. Electronic gastroscope: Electronic gastroscope
5. Diameter of distal-end: 9.6mm/9.2mm /12.8mm
6. Diameter of Biopsy channel: 2.8mm/3.2mm/3.7mm
7. Depth of field: 3-100
8. View of field: 140°
9. Range of bending:UP 210° ,Down 180° R/L 160°
10. Working Length: 1035mm/1330mm
11. Model No.: EMV-200 & EMV-400
12. Resolution: Sony 480,000 pixels
13. Certificate: CE ISO13485
14. Type: Electronic Endoscope
15. Instrument classification: Class II, Class III

Packaging & Delivery
Packaging Details
endoscope into suitcase then into outer carton
ctn size : 64*38*48cm
light source & image processor packing with EPE foam and bubble bag then into outer carton
ctn size :54*47*23cm & 50.5*46*20cm
Port: Guangzhou
Lead Time : 7-15 days

EMV-200	Technical details
Diameter of Distal-end	9.8mm / 9.2mm
Diameter of Biopsy channel	2.8mm
Depth of field	3-100mm
View of field	140°
Bending range	UP 210° ,Down 90° R/L 100°
Working length	1035mm
Resolution	SONY CCD 480,000 Pixels
Certification	ISO 13485 & CE
OEM	Yes
Warranty	Same as international business regulation ,we provide 12 month warranty .

EMV-400	Technical details
Diameter of Distal-end	12.8mm
Diameter of Biopsy channel	3.2mm/3.7mm
Depth of field	3-100mm
View of field	140°
Bending range	UP 180° ,Down 180° R/L 160°
Working length	1330mm
Resolution	SONY CCD 480,000 Pixels
Certification	ISO 13485 & CE
OEM	Yes
Warranty	Same as international business regulation ,we provide 12 month warranty .

EMV-3000	DSP - digital image processor, powerful, brightness, color, contrast.Adjustable from 0-128 level, Svideo / AV / DVI output
Working station	Workstation software that automatically generates
Screen adjustment	Gain adjustment function 0-5 level, automatically adjust the brightness of the picture in the best shape,State color adjustment 0-128 level, blood vessels enhanced
Metering	Average metering, peak metering
Sharpness adjustment	Clarity change image fine processing 0-30 level
White balance	Manual, automatic white balance
Air pump	Mute air pump, air pump pressure 30-80Mpk, air flow 4L / min-10L / min
Illumination	≥200,000 Lx, the United States imported LED high-brightness light source life of 30,000 hours
Extra function	With SD record card ,can store video and image generate reports.

LG-400	Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation.
Voltage	220V-240V
Frequency	50-60HZ
lamp Power	15V-150W environmentally friendly halogen tungsten lamp
Illumination	70000LX (using special measuring tools)
Color Temperature	3000~7000K
Air Pump Pressure	30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump)
Electric switch	AB light two sets light source
