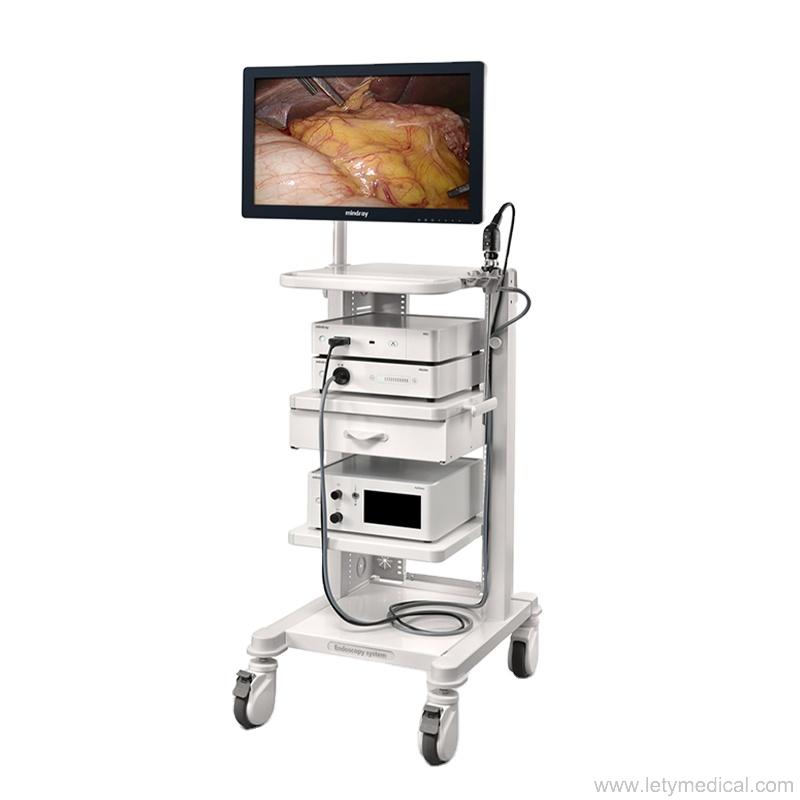

Mindray HD3 Ultra HD Endoscope Camera System Full HD Camera System for Endoscope high quality image

Mindray HD3 Ultra HD Endoscope Camera System Full HD Camera System for Endoscope high quality image

Inspiring your vision
Designed to fulfill the clinical requirements of minimally
invasive surgeries, Mindray's HD3 endoscope camera
system comes with the advanced 3-chip CMOS sensor,
premium optical lens, real-time optimization software
and a FHD screen. Through delivering exceptional image
quality and user experiences, the HD3 endoscope camera
system enables surgeons to focus on their patients, helping
faciliate more accurate diagnosis and treatments.

HD3 Camera System
.3-chip CMOS sensor
. FHD picture taking and video recording with USB port
. Advanced parfocal technology
. 2X optical zoom
. Focal length: 14mm-30mm

Double optical zoom technology

Full HD camera with double optical zoom technology can render tissue images with double optical magnification without loss, so as to meet the needs of doctors for closer and clearer observation of the surgical site;

After a focus, focus is not affected by zoom, continuous clarity, optimized workflow.

Double optical zoom technology general department camera platform

The universal bayonet design can meet a variety of hard/soft endoscope adaption requirements (suitable for other imported, such as laparoscopy, electroprostatectomy, cystoscope, hysteroscopy, sinus scope, arthroscopy, etc., as well as most imported, such as fiber endotracheal intubation mirror, fiber soft ureteroscope, etc.).Realize one machine multi-purpose, save the comprehensive cost of the hospital.

Full HD camera with double optical zoom technology can render tissue images with double optical magnification without loss, so as to meet the needs of doctors for closer and clearer observation of the surgical site;

Laparoscopes
High-resolution images and outstanding color rendition
Scratch-resistant sapphire lens
Fog reduction function
. Autoclavable lens
Compatible with third-party optical fber cables
HS50 Insufflator
Maximum flow rate: 50L/min
Large 7-inch touchscreen
. Gas heating function
Smoke evacuation
. Automatic flow compensation
. Auto-switchover between veress needle mode and trocar mode
.Up to 5 insufflation modes, satisfy all insuffation needs
HB2O0L LED Light Source
Equivalent to 300W Xenon light source
Autoclavable light cable
. Auto-detection of light guide cable
. Light intensity indicator
. LED life expectancy: 40,000 hours

PV27 FHD Monitor
1920*1080 resolution
. . Picture-in-picture mode
Adjustable brightness
Flexible input: DVI,SDI,S-video,VGA
