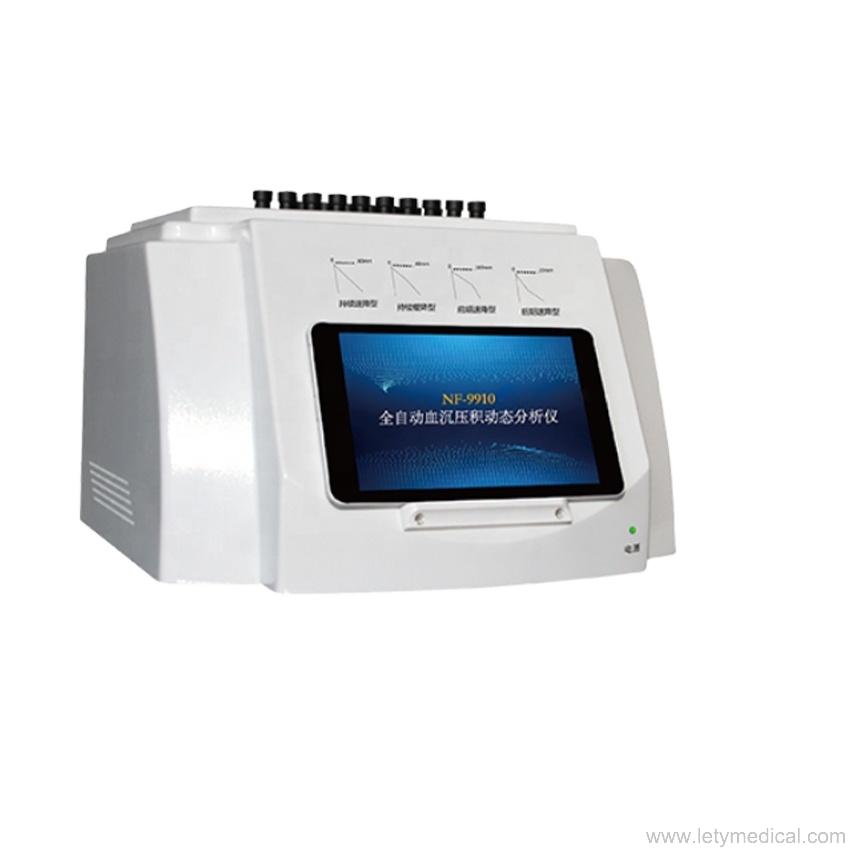

ESR and HCT Analyzer
Model:LTL-NF-9910
Technical Index
Testing Time: 30/60 min (optional)
Testing Range:0mm/h-140mm/h
Testing Accuracy:±1mm
Repeatability :
|
0~10mm/h ESR: SD≤1.5mm/h More than 10 mm/h ESR: CV≤15%, HCT CV ≤3% |
Testing items
ESR, HCT ,dynamic subsidence curves, K value
Testing Performance
The test status shows in real time, it will automatically alarm the error sample
Diagnostic Safety
Direct test with vacuum blood collection tube; enclosed sample testing
Testing Method
Automatic real-time scanning for RBC and plasma interface is reliable and accurate
Other Related
Automatic blood viscosity dynamic analyzer
Model:LTL-990BT3
Performance characteristics
Detection principle
Technology of Pressure sensing can be dynamic test of the every shear
Automatic calibration
Use standard blood and plasma quality control material in order to develop tests
Bio-safety
Cleaning All of the testing parts to make them be no contaminant on surface of the testing needle
Probe testing
System can recognize the interface between air and liquid and plasma and RBC
| Shear rate range | 1/s-200/s | Whole blood test time | ≤35 s/cases |
| Viscosity range | 0mpa.s-60mpa.s | Plasma test time | ≤25 s/cases |
| Test temperature | 37 ℃ plus or minus 0.5 ℃ | Constant amount of whole blood | ≤1.0 ml |
| Repetitive | Whole blood hypertomy ≤0.8%. | Constant plasma dosage | ≤0.8 ml |
| Whole blood hypotomy ≤1.0% | |||
| Plasma 1.0% or less |
|
|
