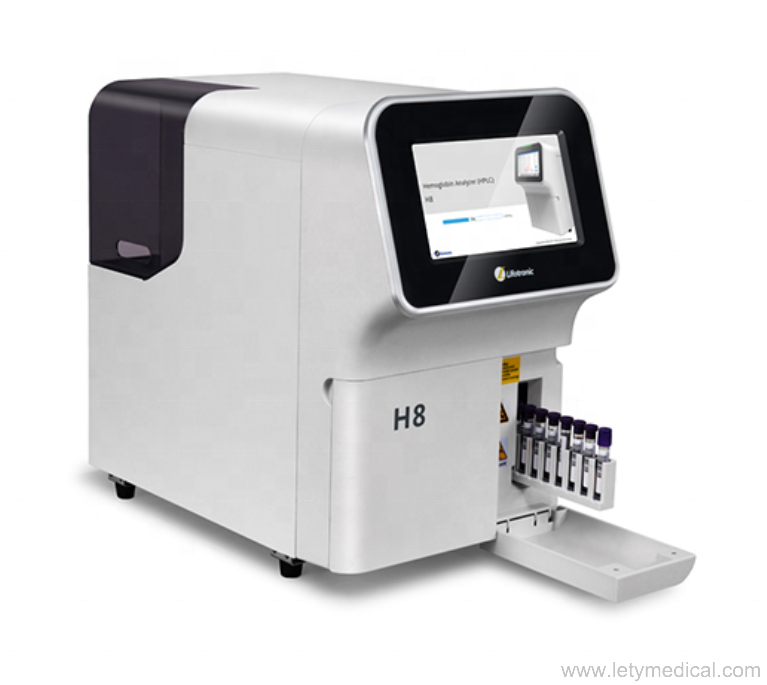

Lab Hemoglobin Analyzer HPLC High Performance Liquid Chromatography (HPLC)
Model: LTL-H8
Gold Standard of Diabetes Diagnose Glycosylated hemoglobin (HbA1c) is widely recognized as a Gold Standard to monitor diabetes, which can indicate the average plasma glucose concentration over 8 ~ 12 weeks. HPLC Methodology High-Pressure Liquid Chromatography (HPLC), to separate HbA1c directly with measuring the absorbance points continually to form chromatogram. Using normal distribution curve fitting auto-iterative algorithm to get precise HbA1c testing result, excluding interference of variant and unstable hemoglobin like HbF. Standard Analysis Mode will
report HbA1a, HbA1b, HbF, La1c, HbA1c, HbA0 peak areas and ratio. And the result also includes IFCC, NGSP and ADAG value for diverse client needs.
| Methodology | High - Performance Liquid Chromatography (HPLC) |
| Test Modes | Standard Mode,Variant Mode,B- thalassemia Mode(Upcoming) |
| Test Range | 3%-18% |
| Precision | cV≤1.5% |
| First Sample Result | 7.5 Mins |
| Test Speed | 90 Secs / Sample for Fast Mode,130 Secs / Sample for Variant Mode |
| Sample Type |
Venous Blood,Finger Peripheral Blood,Lyophilized Whole Blood Peripheral Blood, 50Oul ( 150 Dilution Ratio ) |
| Auto Sample Station | 10 Positions |
| Photometer | 415nm + 500nm Detector |
| Chromatography Column | Available Tests > 800T |
| Filter | 400T |
| Display | 10.1"TFT True Color LCD Touch Screen |
| Software | Linux Software with Self - Diagnosis to Monitor and Detect System Errors |
| Reagent Kit | Eluent A,Eluent B, Eluent C,Hemolysin, Calibrator,QC Material ( Weight Sensor±1%) |
| Information Input | Scanner or Touch Keypad |
| Storage | 4000 Sample Results |
| Connection | usB,LAN,LlS Compatible |
| Printer | Thermal Printer and External Laser Printer |
| operation | Temperature 10~30℃( 50~86“F) |
| Humidity | 8O% |
| Power | AC100-240V 50/60Hz120VA |
| Dimensions | 600mm x 360mm x 540mm ( 23.6""Hx14.2"Wx21.3""D) |
| Weight | 49KG ( 108 lbs ) |
| Rarcode Sanner | QC Curve |
