-25°C

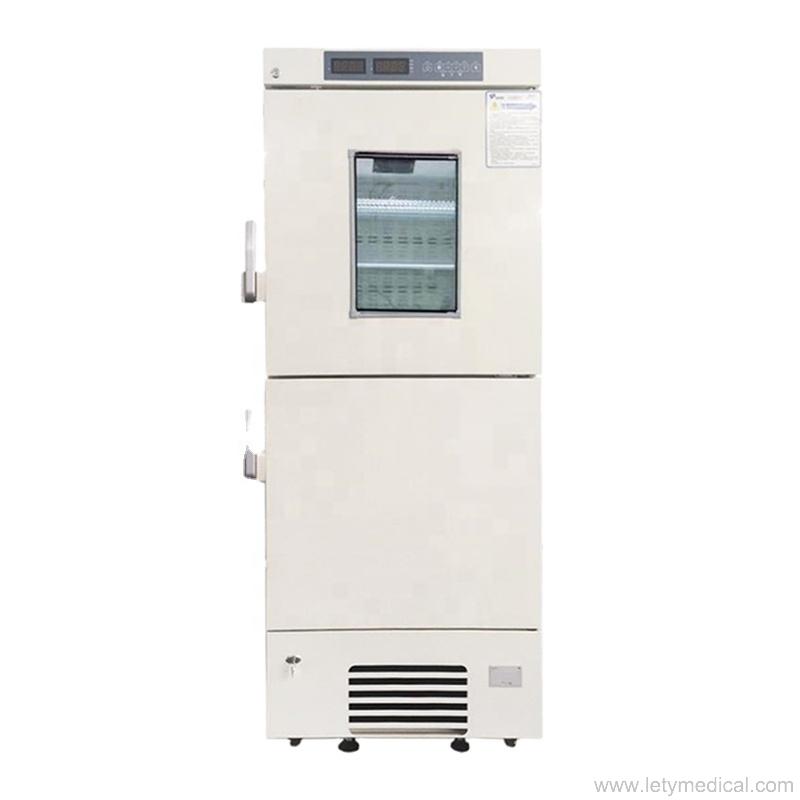

Medical Freezer
Model:
LTL-25V268E (268L)
LTL-25V328E (328L)
LTL-25V278W (278L)
Applications
-25°C medical deep freezers are designed to store vaccines, blood plasma, reagent and many other biological materials which is widely use in research institution, clinics, electronic and medical fields.
Features
Accurate microprocessor controller to ensure the inside temperature uniformity.
HC green refrigerant for energy saving and environmental protection.
Upright freezers use quality color sprayed steel panel inside and outside.
Wide available voltage range: 187V~242V.
Security
Safety door lock and controller setting password to prevent unauthorized access.
Build-in back-up battery to display temperature and to operate audible and visual alarm system when power failure(Some models).
Inner doors to prevent cold air from leaking out when the outside door is opening (Some models).
Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
Power failure protection: turn on delay of the cooling system after power failure.
Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or sensor failed.
Optional parts
Test hole, Data logger, cold storage basket, remote alarm port, 110V to 220V Transformer.
Specifications
Model No. |
LTL-25V268E |
LTL-25V328E |
LTL-25V278W |
Performance |
|||
Temperature Range |
-10 ~ -25°C |
||
Ambient Temperature |
+10~32°C |
||
Controller |
Microprocessor |
||
Display |
Digital Display |
||
Noise |
46 dB |
46 dB |
46 dB |
Electrical Data |
|||
Power Supply |
220V/50Hz |
||
Rated Power |
180 W |
180 W |
180 W |
Electrical Current |
1.4 A |
1.4 A |
1.5 A |
Power Consumption |
3 kWh/24h |
3 kWh/24h |
1.5 kWh/24h |
Refrigeration System |
|||
Compressor |
1 |
||
Refrigerant |
R290 |
||
Cooling Type |
Direct cooling |
||
Defrost Type |
Manual |
||
Alarm |
|||
High/Low Temperature |
Y |
Y |
|
Sensor Error |
Y |
Y |
|
Controller Error |
Y |
Y |
|
Door Ajar |
Y |
Y |
|
Power Failure |
Y |
/ |
|
Dimensions |
|||
Capacity |
268 L |
328 L |
278 L |
Interior Size(W*D*H) |
508×455×1137 mm |
508×455×1393 mm |
480×415×1460 mm |
Exterior Size(W*D*H) |
673×676×1630 mm |
673×676×1886 mm |
659×600×1694 mm |
Package Size(W*D*H) |
770×770×1804 mm |
770×770×2040 mm |
710×650×1800 mm |
N.t./G.t.(approx.) |
98.5/115 kgs |
113/131 kgs |
105/115 kgs |
Accessories |
|||
Shelf |
3 |
4 |
/ |
Inner Door |
4 |
5 |
/ |
Drawer |
/ |
/ |
7 |
Caster with Stopper |
4 |
4 |
/ |
