High Quality Lab Protein purification system Protein purification chromatography system

Protein purification system
Protein purification
Protein purification
Product description: High Quality Lab Protein purification system Protein purification chromatography system
INQUIRY

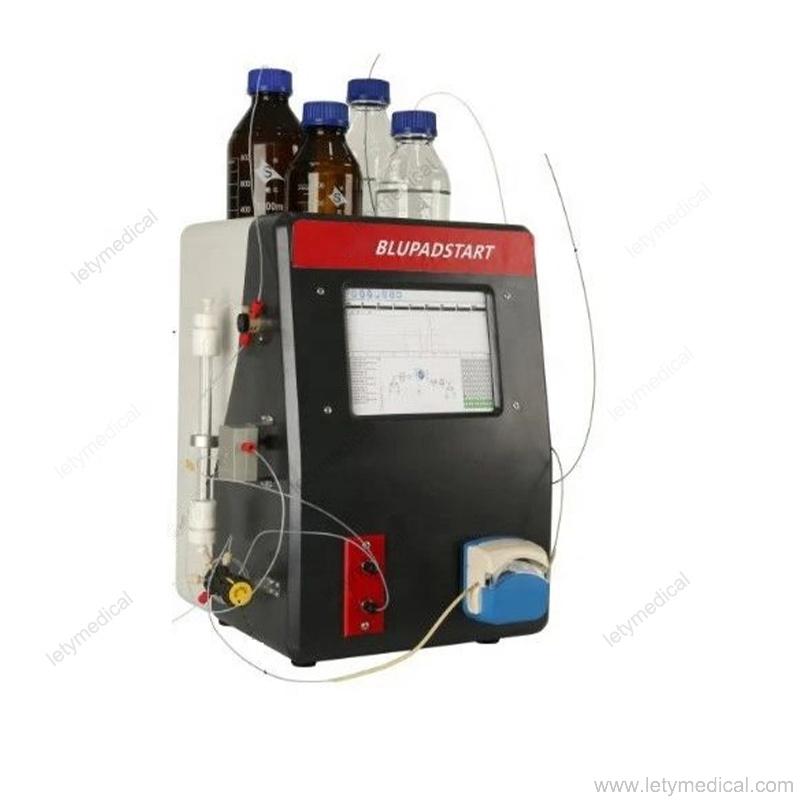

High Quality Protein purification system

Model:LTL-blupadStart

Product introduction

Protein purification systems are primarily used in molecular biology and are capable of performing a variety of commonly used purification techniques, such as affinity chromatography, ion exchange chromatography, desalination and buffer exchange, and gel filtration.As a result, the system supports the purification of a variety of proteins, including labelled proteins, antibodies, unlabelled or natural proteins, and sample purification.

Product features:

*UV detector and conductivity detector are designed separately.

*English and Chinese operation interface is interchangeable, simple operation, easy to learn and use.

*Real-time automatic data saving, can prevent the loss of data caused by unexpected power failure;

*High-precision constant-current pumps allow real-time online modification of gradient and flow rates.

*Equipped with highly sensitive detector, different UV, conductance and other detectors can be selected.

*Support collection valve collection, collector collection.

*Double channel collection valve 1 collection,1 waste liquid port.

Whether you are purifying labeled proteins or natural proteins or antibodies, you have to make everything simple.

The compact integrated purification system is especially suitable for teaching laboratory, pharmaceutical factory and other units to use.Eliminate the trouble of manual operation, achieve automatic control of the purification process, and help you easily realize the transition from manual to automatic protein purification.

Touch screen computer

Super large 8.5-inch clear touch screen industrial computer, run the system by clicking.Infusion system constant current pump can provide continuous and stable accurate flow rate, flow rate range of 0.1-10 mL/min, maximum pressure withstand 3bar, detection system imported LED cold light source, stepper motor program control detection system, wavelength: 260nm, 280nm(standard) optional: 214, 230, 340nm

Conductance detector

On-line conductance detection spectrum line, it is convenient for users to master the experimental data, conditions in real time, can be conductance and temperature compensation.Distillate collection (partial collector) FC partial collector, XY axis mode, high precision positioning, strong automatic collection capability, support full collection, by peak collection (threshold, slope, conductivity).Simple and easy to operate JP-Blupad 1.0 tomography workstation;Real-time monitoring and control of the flow path;The same screen picture shows: UV, gradient line, temperature, conductivity, collection tube number.Automatic software control improves collection purity and repeatability.

Whether you are purifying labeled proteins or natural proteins or antibodies, you have to make everything simple.

Touch screen computer

Conductance detector

The injection valve

Manual control switch Load, Inject. Waste function, support quantitative ring and quantitative cup injection standard configuration: touch screen computer UV detector constant-current system conductance detector chromatography workstation

High quality UV Transilluminators for laboratory

(Single and double wavelength for choosing)
LTL-CUV20A (Single wavelength 302nm)
LTL-CUV40A (double wavelength 302nm&365nm)

Product introduction

High quality UV Transilluminators are designed for viewing DNA/RNA in agarose gels stained with ethidium bromide(EB) or other dyes. Transparent hinged cover, with UV-blocking material to protect users from exposure to hazardous UV radiation, is mounted by slip-hinges for easy removal and replacement. These 302nm or 365nm UV lamps produce even distribution at the filter surface for better identification and documentation of viewed gels. The 302nm UV induces high fluorescence and sensitivity in ethidium bromide/DNA complexes producing sharp, distinct bands. At this wavelength, photo-nicking, dimerization and photo-bleaching to gels are minimized. Unsurpassed UV intensity and outstanding irradiance uniformity enable visualization of even trace amounts of DNA. Airproof frame reduces the chance of gel damage or contamination.

Application

The UV transilluminator can be widely used in the laboratory of university, research department and corporation involved in molecular biology, molecular genetics, medical and sanitation, agriculture and other life science fields.

Features

1.Unique UV protective glass can be adjusted to the operator's visual angle and fixed providing better UV protection.
2.There are different models for you to choose, single/dual wavelength, single/variable intensity, UV/dual-light. The UV wavelength 254nm, 302 nm or 365nm are selectable according to users' needs. Different wavelength-selectable fit for different DNA dyes, such as SYBR-Green, SYPRO Orange. Also different wavelength for different experimental purpose: 302nm for detection and analysis of EB stained DNA/RNA, 365nm for gel incision or DNA preparation.
3.Dual-light Transilluminator provides two 20cm×20cm work surfaces. White light filter surface is designed for coomassie blue stained protein gels, methylene blue stained DNA gels, silver stained protein gels, autoradiographies, and microtiter plates.
Excellent transmission efficiency for certain wavelength ensures highly detective sensitivity and increase the capture ability for weak signals.
Rational structural design and high-quality UV lamp produce unsurpassed UV intensity and outstanding irradiance uniformity.
4.Small figure and airproof frame make the equipment life longer and maintenance easier.
5. A cooling fan featured inside can improve the life of the machine.
