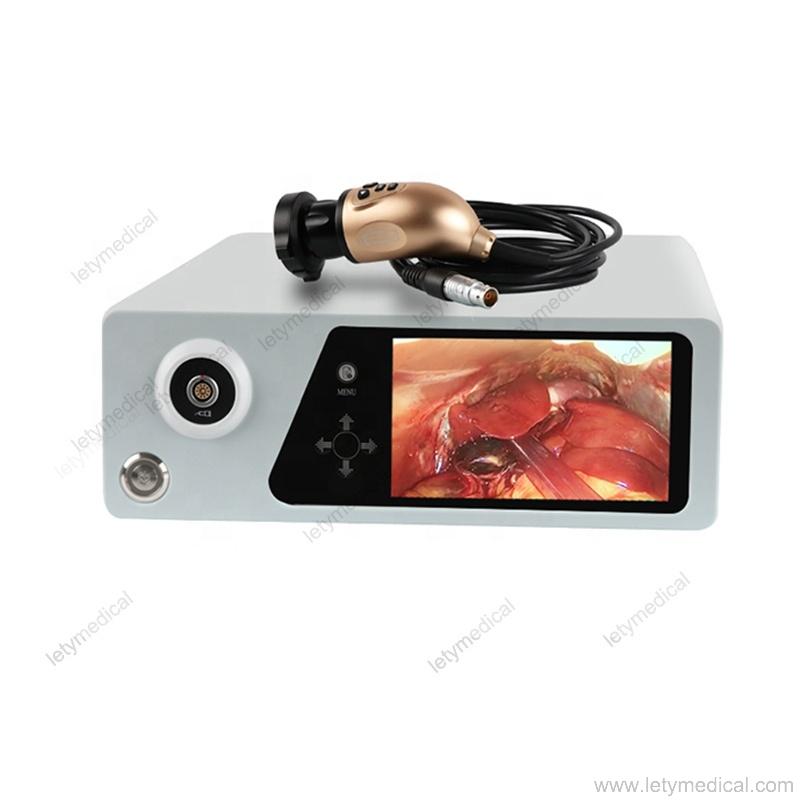

Full HD Medical Endoscope Camera System
Model: LTHD-960
Technical parameters
Medical endoscope light source
Model:LTHJ-30
Technical parameters
More Model
Optical system
RGB dichroic prism method
Camera
1/3 inch CMOS x3
deviceLens
C interface
interface output signal
4K 3840x2160p 3G-SDI (LevelA)x4 1 channel
50/59.94Hz SQD
HD 1920 x 1080p/i 3G/HD-SDI 2 channels
50/59.94Hz DVI 1 way
External synchronization input
3-value SYNC 0.6Vp-p/75Q
Camera cable length
Standard 5m/5m+ 10m
The longest 25m (when using a signal amplifier [option])
power supply
AC100V~230V±10% (50Hz/60Hz)
Power consumption
29W
Clarity
1400 lines
Signal-to-noise ratio
58dB (y and detail adjustment off)
Sensitivity
Standard: 20001 X F8/3200K (LINE MIXOFF)
Image correction function
Shading correction, contour correction, flash correction, screen correction, grayscale correction
Metering area switching function
Narrow/Middle/Full/Circle/The user selects the metering area according to the menu
Video flip function
Up and down, left and right, up and down left and right,
bright adjustment
Can be adjusted by the brightness knob
Spectrum range
400-700nm
LED power supply
100/120/180w
OEM
YES
Output flux
1800lm
Shutter speed
1/60~1/60000(NTSC) 1/50~50000
(PAL)
Color temperature
3000K-7000K
Illuminance
1600000lx
Luminous flux
600lm
Power supply
AC220/110V±10%
