laboratory uv Blue gel electrophoresis uv transilluminator blue light transilluminator

laboratory uv Blue gel electrophoresis uv transilluminator blue light transilluminator

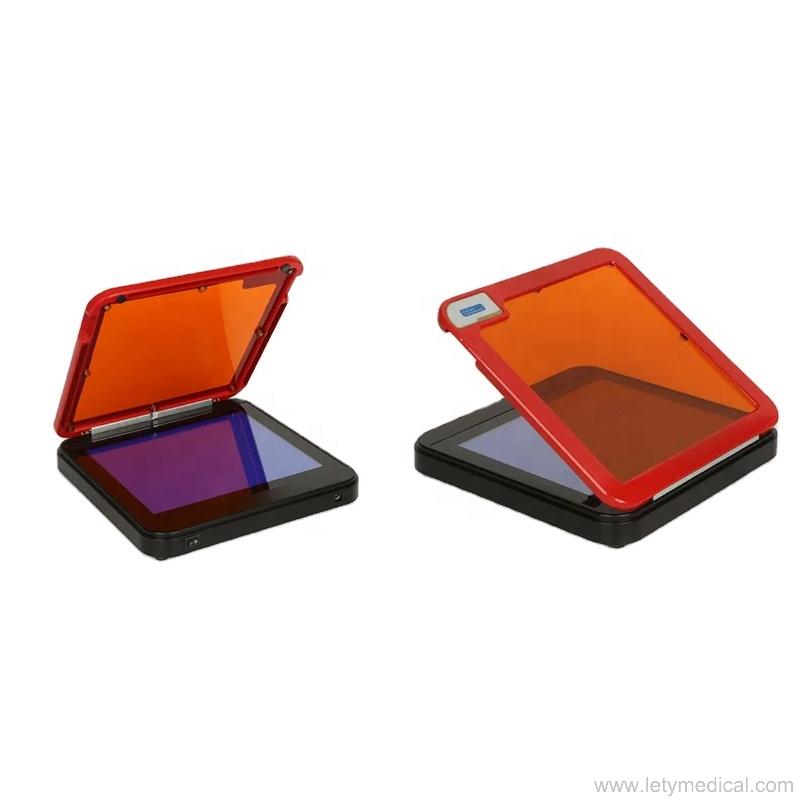

Model: LTL-UVL

The technical parameters of the blue light glue cutting instrument LTL-UVL100 (for gel observation and cutting):

· Volume: 280×255×40mm

· Weight: 1.28Kg

· Blue light glue cutting instrument

· transmission light source: 470nm, blue LED light source

· Sensitivity: up to 0.5 ng

· Coefficient of variation: <10% CV

· Observed area (mm): 190×112 mm

Detail intruduction:

1. Product introduction

The Blu-ray Glue Cutter is the follow-up instrument of the PCR amplification instrument and an essential instrument in the molecular laboratory. It is used to clearly observe the nucleic acid and protein in the stained gel, replacing the traditional UV transilluminator. The Jiapeng Blue Light Glue Cutter adopts LED blue light excitation, which greatly protects the exposed parts such as eyes, face, and hands of the experimenters from being harmed by ultraviolet rays.

2. Product features:

Safe and non-destructive: avoid the damage of ultraviolet rays to human skin and eyes, and the fragmentation, cross-linking or replacement of nucleic acid fragments caused by ultraviolet radiation; wide applicability: compatible fluorescent dyes include GeneGreen, GelRed, GelGreen, SYBR GreenI, SYBR Safe, Goldview , SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP, Cy2, FITC, EB; simple operation: place the sample in the black rubber cutting area, turn on the switch, the light source will evenly excite the gel slice, you can see bright bands Glue cutting, low background interference; long life: blue LED adopts imported chips and gold wire, with a service life of more than 60,000 hours; small size: ultra-thin, light, space-saving, and can be stuffed into a drawer when it is used up; metal body design: base More stable and smoother operation.

Sophisticated design: convenient to carry and store, suitable for outings for investigation, experiment and observation

Blue Light Transilluminator/ Ultra Slim LED illuminator
Model:LTL-DUT-48

Product description:
Transilluminator is used for the observation of gelelectrophoresis. It uses LED light to observe or shoot various dyes. LED light is strong ilumination with no harm. It is long life, smart and portable.

Features
1.Blue light prevent users' easily exposed parts from uv damage.lt' s also no damage fol fragments.
2.With 108 pieces of LED light, long life and strong ilumination. Suitable for observation of range of fluorochrome. High luminance, high sensitivity and good homogeneity.
3.It can be used individually as blue light platform while It can also be used matchir multilmager.
4.Uniform transillumination blu-ray module. Low background values. No side.
5.Screen plate fixed at random. Angle adjustable ,Single hand can operate, which makes more easily watch gel.
6.Compared with the traditional uv transmission instrument: uniform transillumination blmodule, sampleo bservation more symmetrical and photo' s effect is better.
7.Import good quality LED bead. Long-term energy conservation and environmental proter No need to replace bulbs. Free maintenance and long service life of LED can reach to 50000 h
8.Full size transparent filter cover provides the best way of observation, safe operatior observation, convenient glue cutting design,provide the blu-ray protection, to protect personnel. (Please do not look at the blue light with naked eyes for a long time to avoid retinal damage.,)
parameter

Application
Observe the nucleic acid and protein in the stained gel; cut the gel.
Application effect:
The same gel
The same gel under
Under UV light: blue-ray instrument:
