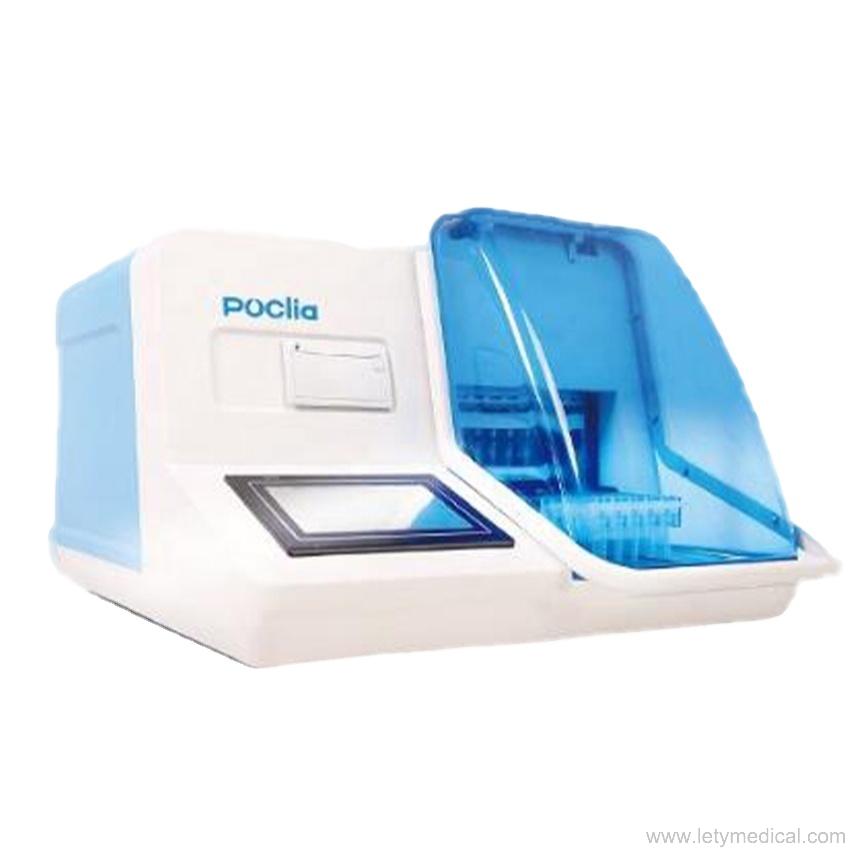

POClia Automatic Chemiluminescent Immunoassay Analyzer POCT CLIA

Instrument type

Automatic Chemiluminescent Immunoassay Analyzer

Model

LTL-POClia 8

Dimensions

530(W)*626(D)*426(H)nm

Weight

30kg

Test batch

8-channel parallel detection

Testing time

Depending on the reagent item

Sample

Whole blood/Serum/Plasma/Urine (depends on reagent type)

Principle

CLEIA and Magnetic particle separation technology

Sampling accuracy

CV<1%,100ul for example

Temp control of reaction area

42 ± 0.5℃ Fluctuation:≤1.0℃

Spectra module of test module

300nm ~ 650nm

Linear correlation

Within a concentration range of not less than 2 orders of magnitude, the linear correlation coefficient (r) ≥ 0.99

Inter-batch repeatability

(CV,%)≤8%

Stability

Results CV at 4 hour, 8 hour with the initial time when machine is steady is ± 10%

Data storage

Patient date: >100000

QC Date

>100000

Calibration Date

>100000

Power supply

100-240 VAC , 50Hz , 200VA

Printer

Built-in

Computer

Built-in

Screen

LCD touch-screen

24h operation (standby)
