Automatic Micro Plate Elisa Reader Microplate Reader

Model:LTL-UMR-9600


UMR-9600 automatic enzyme label analyzer is a professional instrument for reading and analyzing the results of enzyme linked immunoassay (EIA).The product is widely used in applied research in biology, agricultural science, food and environmental science.



This product has the following characteristics:



1) Adopt 7-inch high-resolution LCD capacitive touch screen, no keyboard, simple and intuitive operation, easy to use.

2) 8-bit filter wheel, standard with 4 filters, optional with a variety of other filters;The wavelength range is 340-750nm for a variety of applications;

3) 9-channel vertical light path, automatic positioning function of enzyme pore center.

4) Single wavelength, double wavelength detection, fast reading board;It takes only 10 seconds to read the entire 96-well plate or 16 seconds to complete the dual wavelength inspection.

5) Built-in software can realize dynamic, standard curve, qualitative, quality control and other tests;Software includes program generation and storage, as well as detection data storage function, storage capacity is large;Powerful curve fitting, dynamic analysis and reporting functions.

6) It has the function of self-inspection and diagnosis of optical path and moving position.

7) With vibration plate function, vibration plate time and speed can be adjusted.

8) Energy-saving design of light source to extend the service life of light source to the maximum extent.

9) Various data output interfaces are convenient for data transmission and processing.

10) Measurement data can be directly exported to Excel for further analysis.

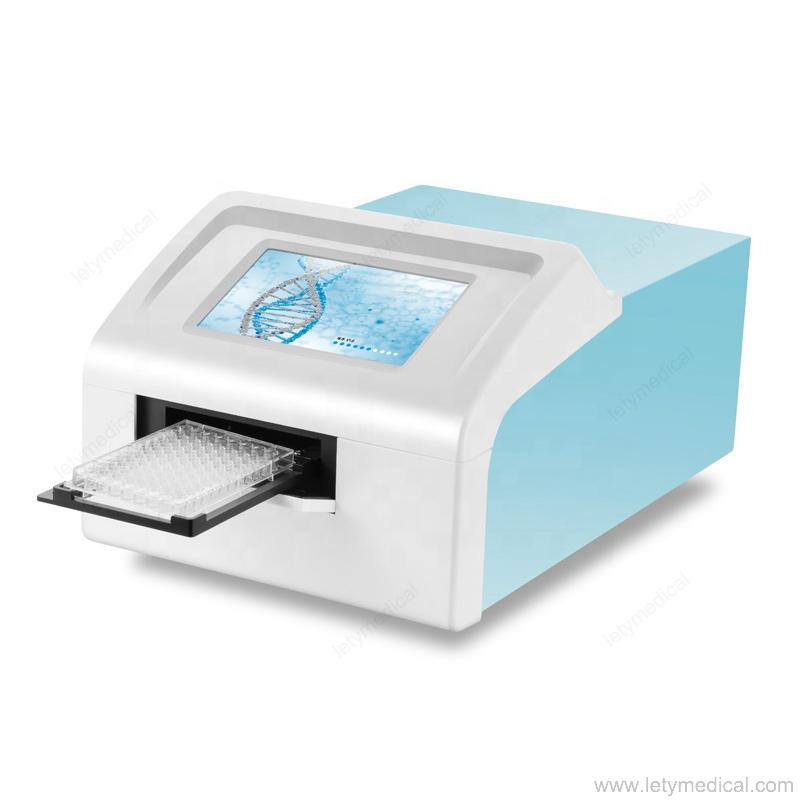

Hospital Clinic Lab Touch Screen Micro Plate Elisa Reader Microplate Reader

Model: LTL-M201

lety M201 2.jpg


Specifications:

Readout Range
Plate Type
Measure System
Wavelength
Band Width And Accuracy
Light Source
Reading Speed
Repeatability
Linearity
Stability
Shaking
Input
Display
Printer
Power Supply
Temperature
Humidity
Interface
Dimension (mm)
Weight

0.000~4.000Abs

96-well Plate
8-channel Optical System
405, 450, 492, 630nm, Two More Optional
8nm+-2nm
Monochromatic LED
5s With Single Wavelength For Whole Plate
<1%
R≥0.995
<0.005Abs/10 min
3 Shaking Modes With Variable Time
Mouse, Membrane Keyboard, Touch Screen
7'TFT LCD, 800 x 480 Pixels
Built-in Printer, External Printer
AC 100~ 240V, 50/60Hz
10°C~35°C
15%~85%
RS-232, 4 USB ports, SD Card
400(L) x 310(W) x 169(H)
6kg
