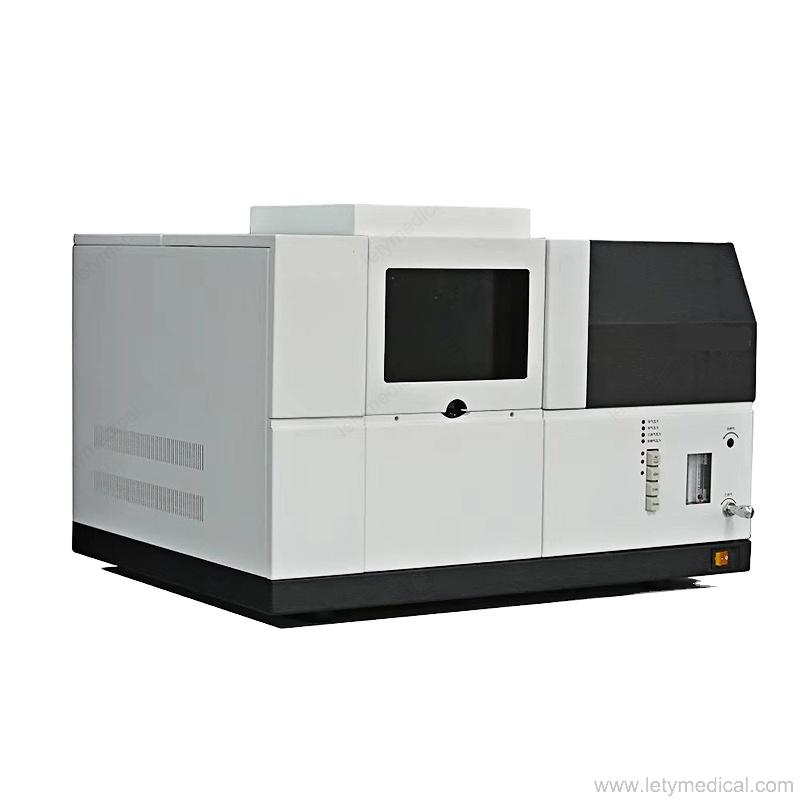

Atomic Absorption Spectrophotometer 190-900nm Laboratory For Metal Element Analysis

Model: LTL-5800

Main Features

♦ On the basis of 7800 AAS, considering commonly used functions, selectively keep some functions, highly cost effective.

♦ The instrument has good stability, wide measurement range, low detection limit, high resolution and high sensitivity

♦ Unique optical design greatly increases the sensitivity in visible range. The outstanding mechanical and optical system plus excellent software ensure measurement accuracy

♦ Rapid change of gas flow, grating rotation, slit and hollow cathode lamps

♦ Widely used in rare earth analysis, precious metal analysis, environmental protection, water quality inspection, alloy materials, construction materials, medicine and health, colleges and universities for quantitative analysis of elements

♦ Practical structure, simple operation, easy to master

♦ Fully satisfy the users who require flame analysis only

♦ Optional nitrous oxide is available. It expands measurement range and meets the demands from different areas.

Specifications

♦ Wavelength range: 190-900nm

♦ Grating: 1800lines/mm

♦ Wavelength repeatability: ±0.1nm

♦ Wavelength indication error: ±0.2nm whole range

♦ Optical system: Czerny-Turner, integrated optical platform, fully closed optical system

♦ Resolution: spectral bandwidth = 0.2nm, can separate Mn two lines(279.5nm and 279.8nm), valley/peak energy ratio<30%

♦ Spectral bandwidth: 0.1, 0.2, 0.4, 1.0nm

♦ Static baseline drift: ≤0.004ABS/30min(Cu)

♦ Background correction technology: D2 (background signal =1Abs, correction capability ≥50 times)

♦ Instrument design: integrating structure of suspended internal and external optical path

♦ Lamp turret: 4-lamp turret (4 lamps can preheat simultaneously)

♦ Burner head: air/acetylene (100mm, optional 50mm nitrous oxide/acetylene burner is available)

♦ Nebulizer: high-efficiency glass nebulizer

♦ Ignition dynamic baseline drift: ≤0.004ABS/30min(Cu)

♦ Characteristic concentration: Cu ≤0.025μg/ml/1%

♦ Detection limit: Cu≤0.008ug/ml

♦ Repreducibility: ≤0.5% ;(Cu, absorbance>0.8ABS)

♦ Gas flow control: manual

♦ Ignition: via buttons on the control panel

♦ Safety protection: automatically cut off gas in case of low pressure, power failure, flame out, or burner mismatched

♦ Background correction method: SR and D2, can correct 1A background. Background signal = 1A, correction capability ≥50 times

♦ Dimension: 700*550*530mm
