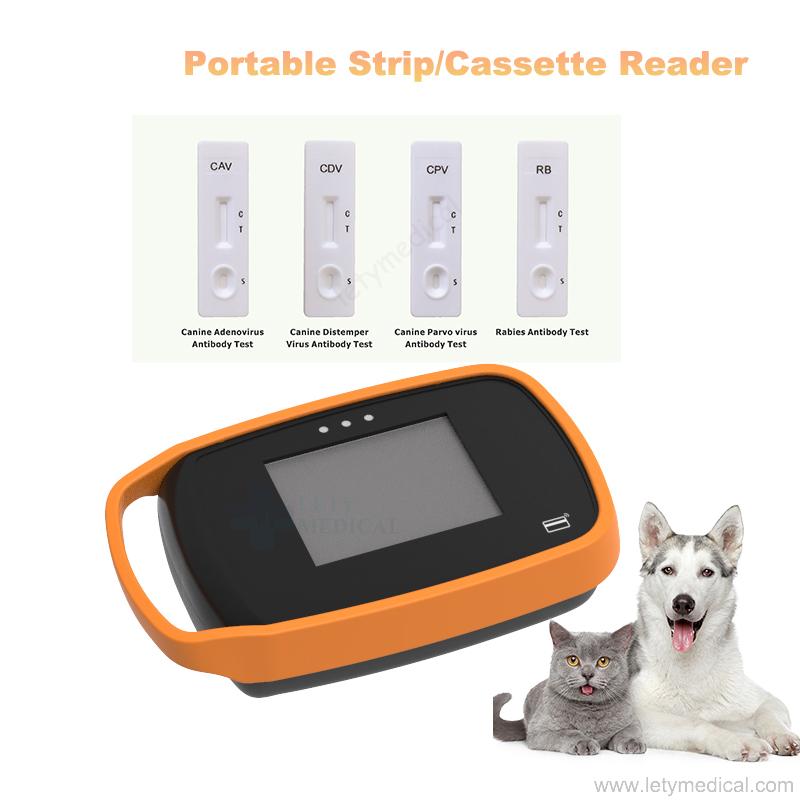

Pet Cassette Reader Rapid Test kits Rapid Test Cassette Portable Strip Cassette Reader

Pet Cassette Reader Rapid Test kits Rapid Test Cassette Portable Strip Cassette Reader

Model: LTV-RV

1. Hardware parameters

(1) Blue toot h version: 4.0;

(2) RFID: 13.56MHz;

(3) LCD screen size: 2.8 inches;

(4) Input voltage: 5V 2A;

(5) Lithium battery capacity: 5000mAh;

(6) Interface: USB interface, TF storage expansion;

(7) Dimensions: 152mm (length) x 92mm (width) x 35mm (height).

2. Main performance characteristics

3.1 Operation interface: slim body, Chinese intelligent system, LCD touch screen, easy to use interface;

3.2 Data fitting: linear, logarithmic transformation, polynomial, four-parameter, semi-quantitative, etc;

3.3 Automatic identification of Strip or Card (Cassette) insertion, intelligent identification of C and T lines, super error correction;

3.4 Display result: automatically calculate the concentration and give negative and positive judgment results;

3.5 CV: <1%;

3.6 Measurement value range: 0-2000;

3.7 Maximum allowable error range of C and T lines: ± 3mm;

3.8 Can store more than 5000 test results;

3.9 Can be connected to a Bluetoot h printer and print the measurement report at any time;

3.10 Large-capacity lithium-ion battery to meet long-term field operation or vehicle use;

3.11 Three major terminals can be customized: Android APP, computer software, and web server upload.

3. Working conditions

Ambient temperature: 5 ℃~ 40 ℃;

Relative humidity: ≤80%;

Atmospheric pressure: 86.0kPa to 106.0kPa.
