Hospital Waste Incinerator

50KG Hospital waste Incinerator

Incinerator (fuel diesel) FSL-50 incinerator

The incinerator of FSL-50 technical parameters

The medical waste incinerator of FSL-50 standard configuration

No	Name	Amount	Specifications	Notes
1	Incinerator	1	Q235 steel refractories	Main part
2	The 2 combustion chamber and the combustion chamber mixed	1	Q235 steel refractories	Installed in the main body
3	Electric box	1		The main body
4	Combustion burner	1	OM-2N	The main body
5	Second burning burner	1	OM-3N
7	Blower	1	1.5KW and 2.2KW	The main body
8	Thermocouple	2	1100℃	The main body
9	Operational procedures	1		The main body

The medical waste incinerator air exhausting

Exhaust air	The second time dedication(mg/m³)
SO₂	163
NOx	219
Smoke and Dust	32
Smoke blackness	＜1

Note:

1. The disposal quantity in the technical parameters is calculated based on the animal carcasses quantity.

2. The disposal quantity may be increased when the decompound is burned.

3. For the finally order,factory would offer some accessories for free.

4. The animal carcasses is decompound under the high temperature.The cremator is smokeless and odor, friendly to the environment.

5. Burning temperature could be adjust according to customer requirements and burning waste.

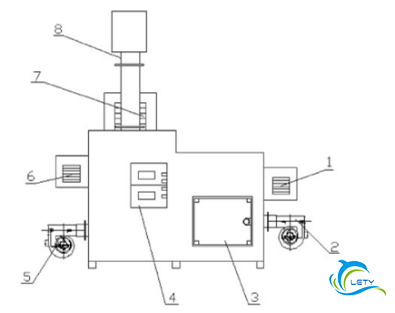

Schematic Diagram:
