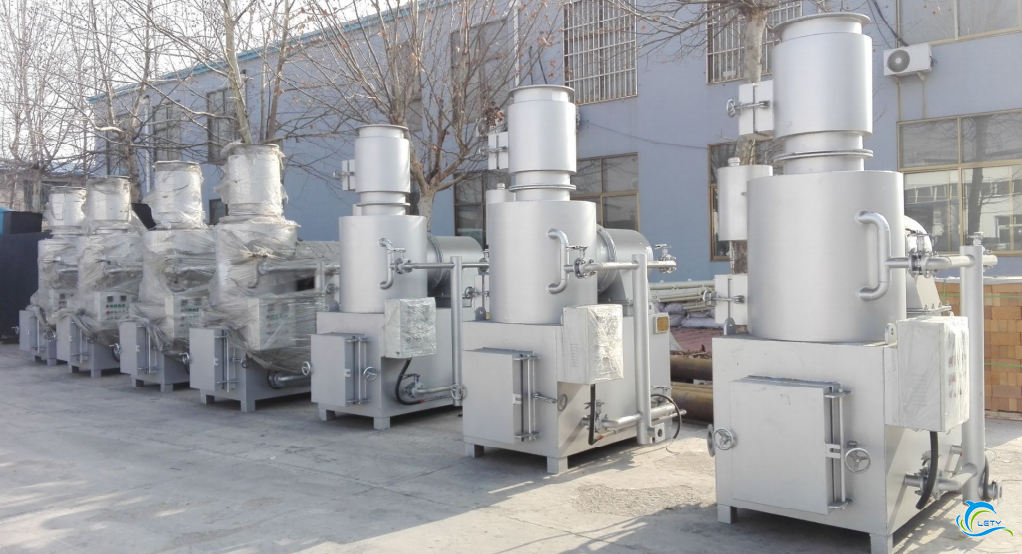

Waste incinerator pet incinerator

1. Description：
WFS Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese
technology, absorbs advantages of similar equipment both domestic and abroad. It features unique and
advanced merits with compact size, high burning effect, reasonable burning technology, high degree of
non-harm etc. It is an ideal choice for waste treatment of hospitals, hotels, industrial, waste recycling,
animal body and other various areas.
2. Main Features：
(1) Gasified pyrolysis incineration is used for burning many kinds of waste.
(2) Waste can be burned once everyday by gasified incineration.
(3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust,
dioxin etc.
(4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(5) Compact structure and small land occupation.

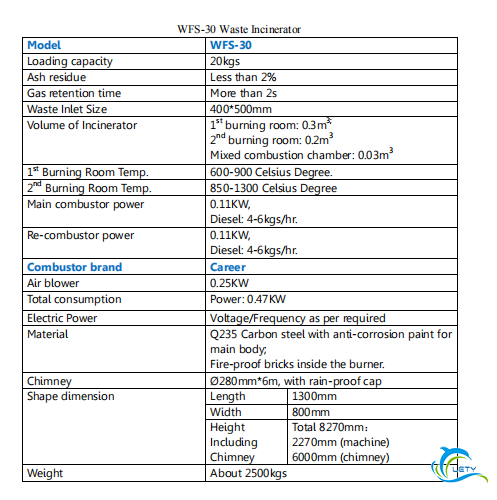

3. Technical Parameters:
WFS-30 Waste Incinerator
Model WFS-30
Loading capacity 20kgs
Ash residue Less than 2%
Gas retention time More than 2s
Waste Inlet Size 400*500mm
Volume of Incinerator 1st burning room: 0.3m3;
2nd burning room: 0.2m3
Mixed combustion chamber: 0.03m3
1st Burning Room Temp. 600-900 Celsius Degree.
2nd Burning Room Temp. 850-1300 Celsius Degree
Main combustor power 0.11KW,
Diesel: 4-6kgs/hr.
Re-combustor power 0.11KW,
Diesel: 4-6kgs/hr.
Combustor brand Career
Air blower 0.25KW
Total consumption Power: 0.47KW
Electric Power Voltage/Frequency as per required
Material Q235 Carbon steel with anti-corrosion paint for
main body;

Fire-proof bricks inside the burner.

Chimney Ø280mm*6m, with rain-proof cap
Shape dimension Length 1300mm
Width 800mm
Height
Including
Chimney
Total 8270mm：
2270mm (machine)
6000mm (chimney)

Weight About 2500kgs

Configuation:

1. A complete system with main body, two burners, one air blower, temperature control, oil tank, electrical
control box, air pipelines, oil pipelines, chimney, ash rake, etc.
2. With 3D video guide for installation.
3. Electricity customized.


1. TERM OF PAYMENT: by T/T
a) The 30% deposit by T/T within 3 days once both parties signed the Sales Contract.
b) The 70% balance by T/T should be paid before shipment.
2. DATE OF DELIVERY: 20 days from the time we received the down payment.
3. WARRANTY: ONE year from the time the machine is fully installed.
