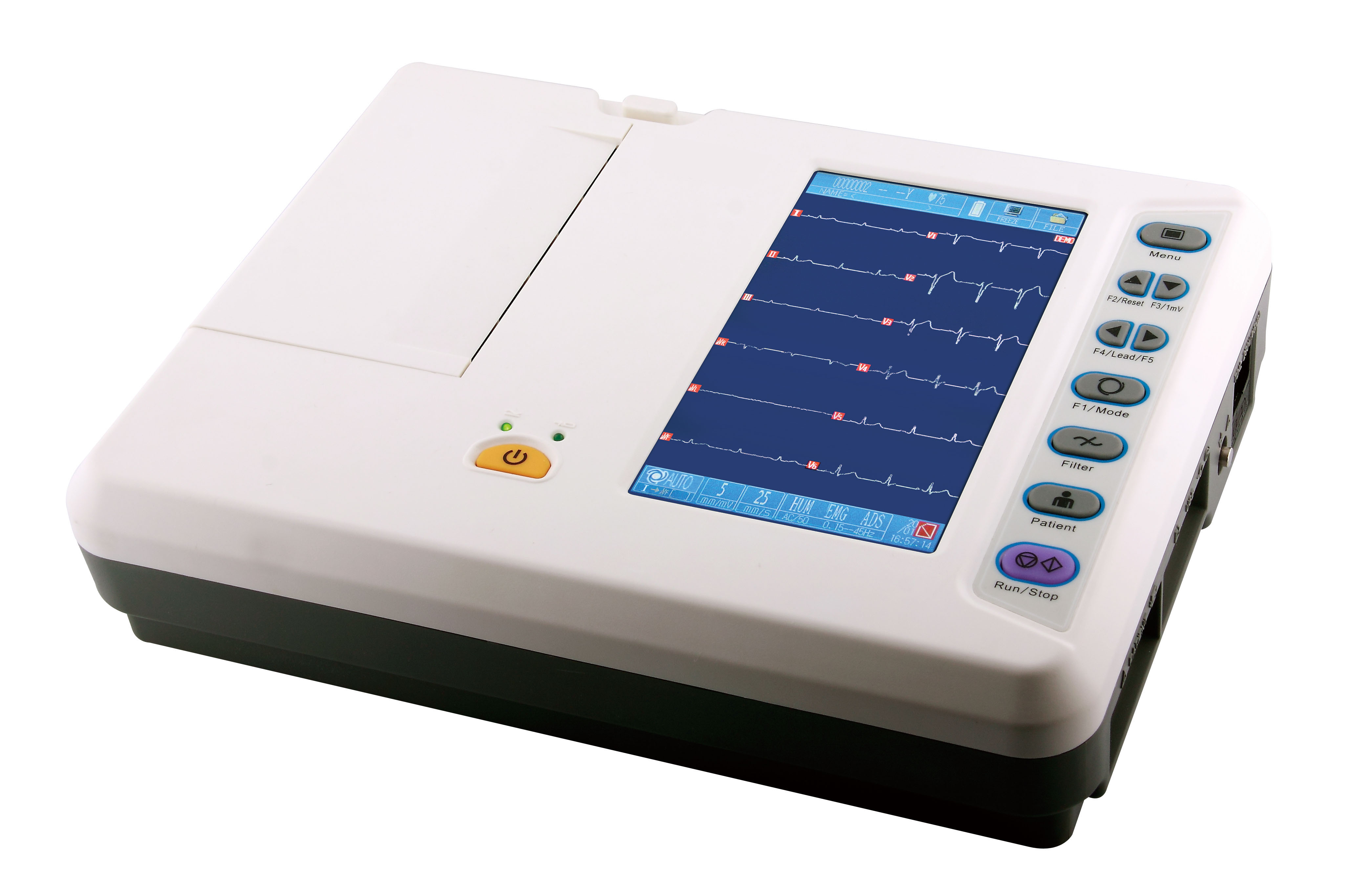

6 Channel ECG machine with Color Screen LT-3306G

6 Channel ECG machine with Color Screen

Model: LT-3306G

Features:

● Compact in size, easy and direct operation, portable

● Accurate pacing pulse identification and automatic analysis function.

● Four working modes: Manual / Auto / Physical Examination / Storage

● 112mm, 6 channel format recording

● [Freeze] function can replay 12 seconds cardiograph before and after

● Fast ECG test under the [Physical Examination] ,saving power and paper

● Store and replay cardiograph without printing parameters and diagnosis under the [Storage] Mode .

● 7''800×480 graphic 7 inch touching screen, fast input patient information

● Adapt to 110-230V, 50/60Hz AC power supply.

● Built in rechargeable Li-ion battery.

● 12 lead waveforms view with 250 patient information storage (Extendable).

● Built-in USB,RS232 interface , EXGNET software optional

● USB interface allows net transfer ,USB flash disk and USB printer connected.

Technical Specification

Lead	Standard 12 leads	Time constant	≥3.2s
lead acquisition	12bit/1000Hz(synchronously 12 leads)	Frequency response	0.05～160Hz(-3db)
Work mode	Manual / Auto / Physical Examination / Storage	Noise level	＜15μVp-p
Filter	AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive)	Inter-channel Interference	≤0.5mm
CMMR	≥100dB (with AC FILTER)	Sensitivity	Auto 2.5, 5,10,20,40mm/mV
Input circuit	Floating; Protection circuit against Defibrillator effect	Recording mode	3ch, 3ch+, 3ch+++, 6ch Default Man. Mode is 3ch format Default Auto. Mode is 6ch+ format
Input Impedance	≥50MΩ	Paper speed	6.25, 12.5, 25, 50mm/s（±3％）
Input circuit current	≤0.05μA	Paper	112mm Roll Paper
Patient current leakage	＜10μA	Communication	RS232/ USB port
Calibrating voltage	1mV±2％	Power Supply	AC 110-230V(±10%),50/60Hz（±1Hz),60VA DC Built-in rechargeable battery,14.4V(2000mmAh)
Voltage tolerance	≥±500mV	Dimension/Weight	300mm×230mm×72mm/2.8Kg
