  • 3 Channel ECG Machine LT-2203B

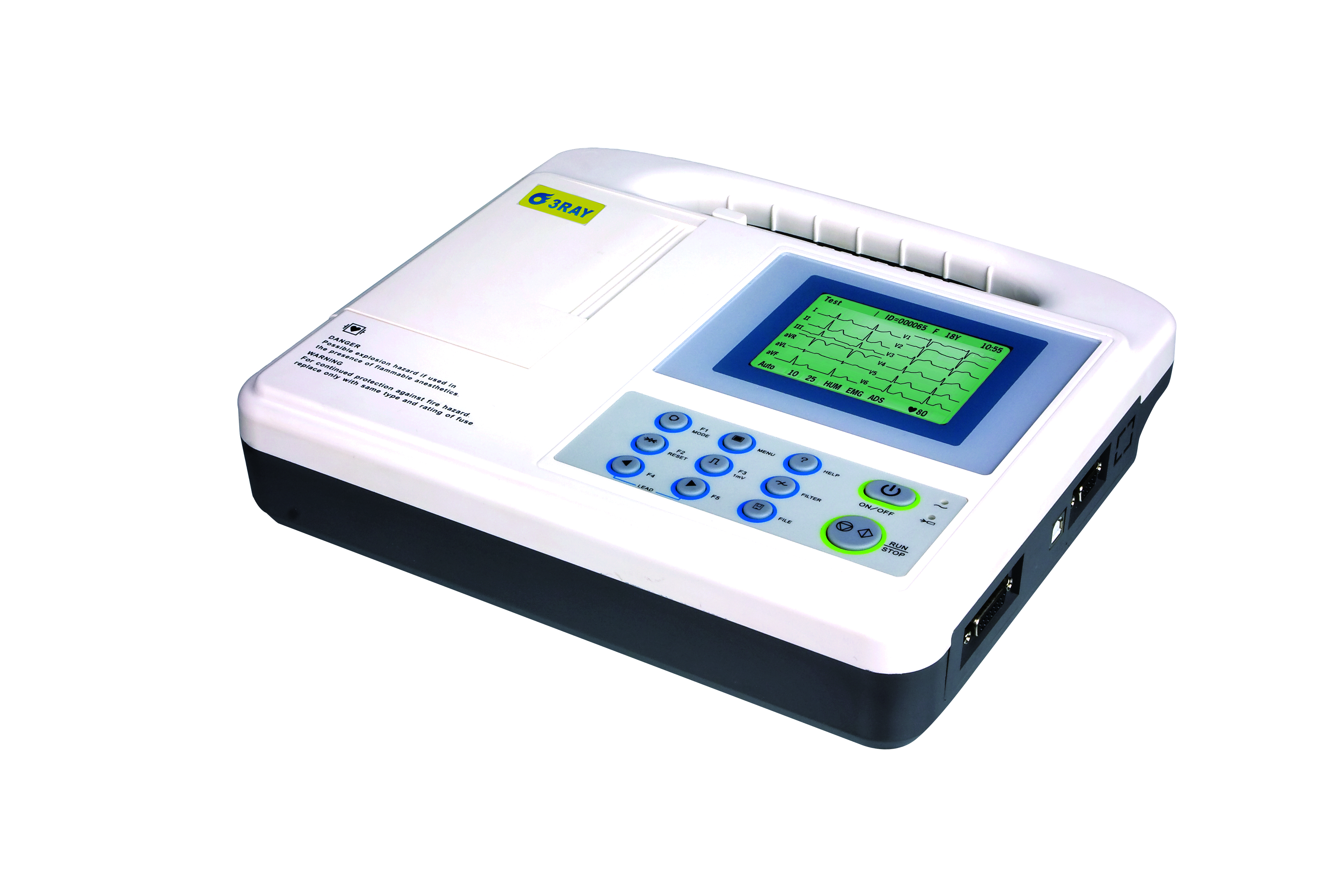

3 Channel ECG Machine LT-2203B

3 Channel ECG Machine LT-2203B

  • Three working modes:Manual / Auto / Arrhythmia Analysis
  • Adapt to 110-230V, 50/60Hz power supply
  • Built-in rechargeable Li-ion Battery
  • Standard 12 leads
  • Product description: Welcome to inquire more informations online
  • INQUIRY

3 Channel ECG machine

Model:  LT-2203B


Features:

Three working modes:

Manual / Auto / Arrhythmia Analysis

80mm, 3 channel format recording

Automatic interpretation

● 320×240 graphic 3.8 inch LCD for ECG- 2203B

Adapt to 110-230V, 50/60Hz power supply.

Built-in rechargeable Li-ion Battery

Real-time ECG waveform

20cases save / replay (Expandable)

Built-in USB/RS 232 interface

ECG software optional

Compact in size, easy and direct operation, portable


Technical Specification

Lead

Standard 12 leads

Time constant

3.2s

lead acquisition

12bit/1000Hz(synchronously 12 leads)

Frequency response

0.05160Hz(-3db)

Work mode

MAN、AUTO、ANALYSIS Modes

Noise level

15μVp-p

Filter

AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

Inter-channel Interference

0.5mm

CMMR

100dB (with AC FILTER)

Sensitivity

5,1020mm/mV

Input circuit

Floating; Protection circuit against

Defibrillator effect

Recording mode

Default Man. Mode is 3ch  format

Default Auto. Mode is 3ch+ format

Input Impedance

≥50MΩ

Paper speed

6.25、12.5、25、50mm/s(±3

Input circuit current

0.05μA

Paper

80mm Roll / Z-Fold

Patient current leakage

10μA

Communication

RS232/ USB port

Calibrating voltage

1mV±2

Power Supply

AC 110-230V(±10%),50/60Hz(±1Hz),60VA

DC Built-in rechargeable battery,14.4V(2000mmAh)

Voltage tolerance

±500mV

Dimension/Weight

285mm×265mm×72mm/2.8Kg
