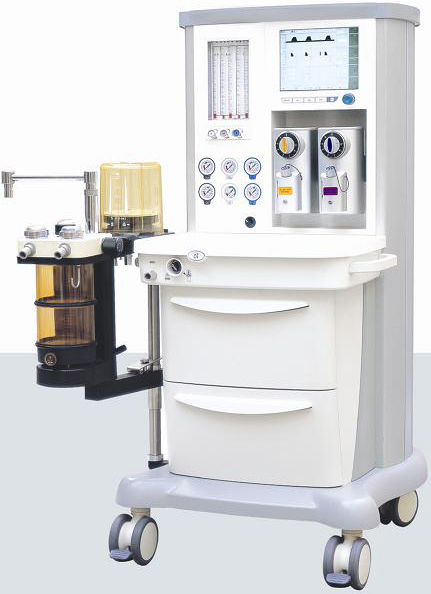

Anesthesia System LT--301D

Anesthesia System

Model: LT-301D

Main Feature:

1. Applied for closed, semi-closed, semi-open

inhalation anesthesia, controlled or

assisted ventilation, monitoring and

display patients’ ventilation parameters

2. Applied for adult and pediatric

3. Integrated anesthetic ventilation system,

APL security air relief valve is available

4. Vaporizers: 1.  Advanced temperature,

flow and pressure compensation technology,

Isofurane, Enfurance, Halothane and

Sevoflurance as per option

5. 10.4” TFT-LCD display screen

Main Specification:

Type: Electronically controlled, Pneumatic driven

Patient spectrum: Pediatric to bariatric

Mode of ventilation: VCN, SIGH, SIMV, Stand-by, Manual, PEEP

Hypoxic guard system: N₂O cut-off valve, O₂ concentration no less than 25%

Safety valve: <12.5kpa

Monitoring: VT, MV, BPM, Paw, FiO₂

Waveform: Pressure-time, flow-time, pressure-volume loop, volume-time (Optional), flow-volume loop (Optional)

Power: AC 220V±10%, 50Hz±2%, built-in battery support

Gas: O_2, N₂O, air

Alarm: Optimal multi-class alarm unit, VT beyond limitation, upper and lower limitation of ventilation, upper  and lower limitation of ventilation, upper and lower limitation of airway pressure, asphyxiation, current failure, gas source hypotonic, gas circuit abnormity, upper and lower limitation of CO₂ concentration (Optional)

Prompt and protection: Prompt for parameter limitations, protection for unreasonable parameter setting.
