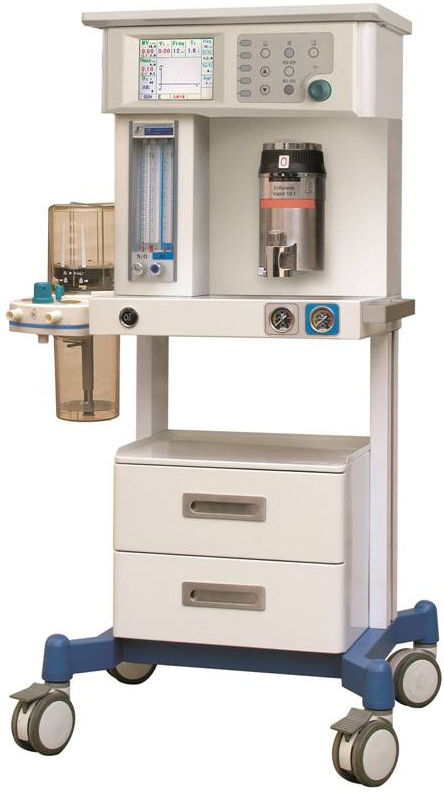

Anesthesia Machine LT-2010A

Anesthesia Machine

Model: LT-201A

Main Feature:

Applied for adult and pediatric

Compact Anaesthesia ventilation system with the standard of ISO9001:13485

7" LCD display ventilation parameters,

preset parameters alarm indication and breathing waveform

Volume: 1190mm*410mm*710mm. Weight: 82kg

Applied for semi, semi-close, semi-open operation

Main Specification :

Type: Electronically controlled, bellows driven

Patient spectrum: Pediatric to bariatric

Modes of ventilation: IPPV,MANUAL

Display size: 7 inch

Tidal volume range (V t): 0 mL to 1,500 mL

BPM range: 1 to 100.  I:E ratio: 4:1 to 1:8

Hypoxic guard system: N2o cut-off valve, O2 concentration no less than 25%

Safety valve: <12.5kpa

Fresh gas compensation: 25-75L/min

Monitoring: VT, MV, BPM, Paw

Waveform: Pressure-time, flow-time, pressure-volume loop

Battery power: 30 min minimum; typical operating time 120 mins +

Battery type: Internal, rechargeable sealed lead acid

Input voltage: 100-240 VaC

Frequency: 50/60Hz

Current: 500ma max.

Power consumption: 50VA

No. of gases: O2, N2O

No. of vaporizer: 1 back entry (Enflurane, Halothane, Isoflurane)

Volume of CO2 absorber: 1.5L

Working condition:

Patient airway pressure range: －2kPa～10kPa

Airway pressure monitoring range: 0～9.9kPa

Max. operating pressure range that can be set

(Pressure limit range): 2.0kPa～6.0kPa

Max. limit pressure: <6.0 kPa

Storage condition: -10℃～40℃, humidity<90%
