  • ICU Ventilator LT-3010

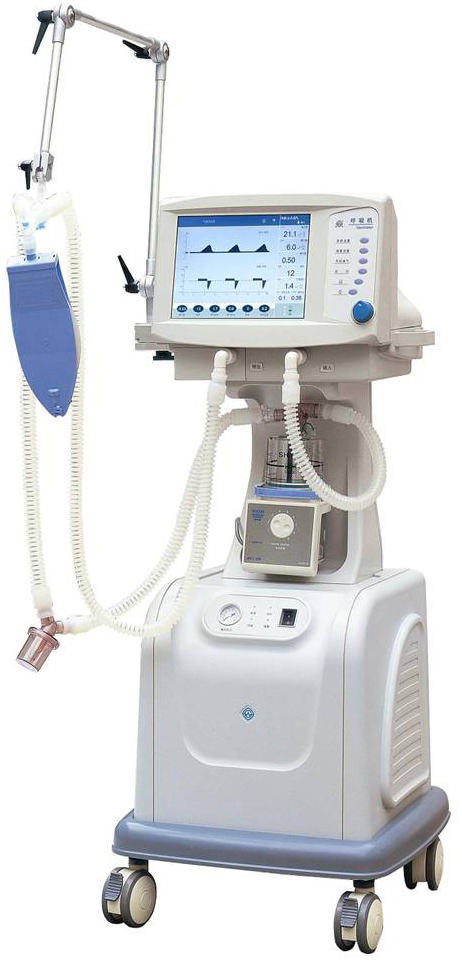

ICU Ventilator LT-3010

ICU Ventilator LT-3010

  • Removable 15 inch large touch screen
  • Applied for adult and child
  • With high-intelligent control system
  • Humidifier with temperature adjustment
  • Product description: Welcome to inquire more information
  • INQUIRY


ICU System Ventilator

Model: MCV-3010



Main Features:

1. Microprocessor controlled, Pneumatically driven

electronically controlled

2. 12.1" TFT touch screen, user friendly interface

3. Built-in medical air compressor, built-in backup

battery up to 3hrs

4. LCD display ventilation parameters, preset

parameters alarm indication and breathing waveform

5. Applied for adult and child

6. CE marked


Air compressor technique info

7. Output pressure: 0.4MPa ±0.1MPa

8. Noise ≤50dB

9. Power: AC 220V ± 10%, 50Hz ± 2%


Main Specification

Ventilation Mode

IPPV, SIGH, A/C (SIPPV), SIMV, MANUAL, PEEP, CPAP/SPONT

(standard)

PCV, PSV, BI-LEVEL, S,T, S/T (optional)


Parameters

●Tidal volume: 20~2000ML

●Ventilation volume per minute: 0L~20L

●Frequency: 1~100/min

●I/E Ratio: 4:1~1:8

●Holding time: 0~6s

●O2 concentration: 21~100% adjustable.

● Pressure limitation: 0.5~8.0KPa

● Safety Pressure ≤12.5KPa

● PEEP: 0~3.0KPa

● CPAP: 0~2.0KPa

● Inspiration trigger sensitivity:

pressure -2.0KPa (base on PEEP)

flow: 1~30L/min

● Sign: 1-5 (per 100 times)



Ventilation monitoring

●Tidal volume,Minute ventilation,Frequency, Airway Pressure, inspiration time, PEEP, FiO2, PCV,PSV

●Waveform of time-airway Pressure.


Alarm (Audible and visible reminding)

●No tidal volume, ventilation volume is too high (low) ,

Airway Pressure is too high (low), frequency is too high,

AC Power off , back up battery voltage is too low


Technique info

● Gas source: Oxygen, Air

● Working Pressure: 0.4Mpa

● Reserve Condition: Temperature:-10~40℃, Relative humidity: ≤90%

● Working condition: Temperature:5~40 ℃, Relative humidity:≤80%
