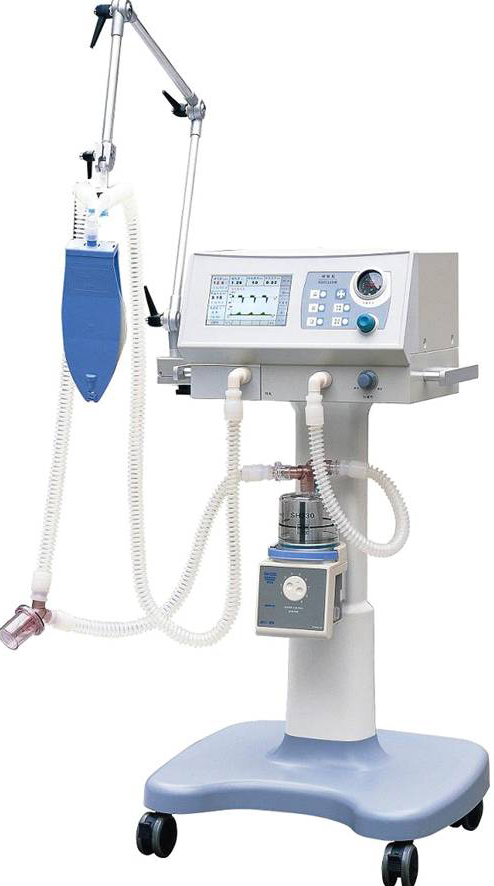

Medical Ventilator
Model: LT-3020A
Main Feature:
1. Applied for adult and Child
2. High-intelligent control system
3. 7 inch TFT display for ventilation parameters
4. Noninvasive ventilation
5. Flow (optional) and pressure trigger
Main Specification:
Power: AC 220V±10%, 50Hz ~ 60Hz±2%,
built-in battery for back-up
Gas source: O2, Air
Ventilation mode: VCV, SIMV, Sigh, SPONT,
CPAP, PEEP, S, T, S/T, Bi-level, Manual
Parameter monitoring: Tidal volume, MV, Breathing rate,
Inhaling time, Airway pressure, PEEP, FiO2.
Waveform display: Pressure-time, flow-time (Optional)
Breathing rate: 4~100bpm
Inhaling time: 0.2~6sec
I:E ratio:4:1~1:8
Tidal volume: 50~1500ml
Pause time: 0~50%
PEEP: 0~2Kpa
CPAP: 0.4~2Kpa
Trigger sensitivity: -2kpa~2Kpa
Sigh time: 1-5
O2 concentration: 45%~100%
Alarm:
No tidal volume, MV too high (low), Paw too high (low), FiO2 too high (low),
O2 or air failure, AC power failure, back-up battery too low.
