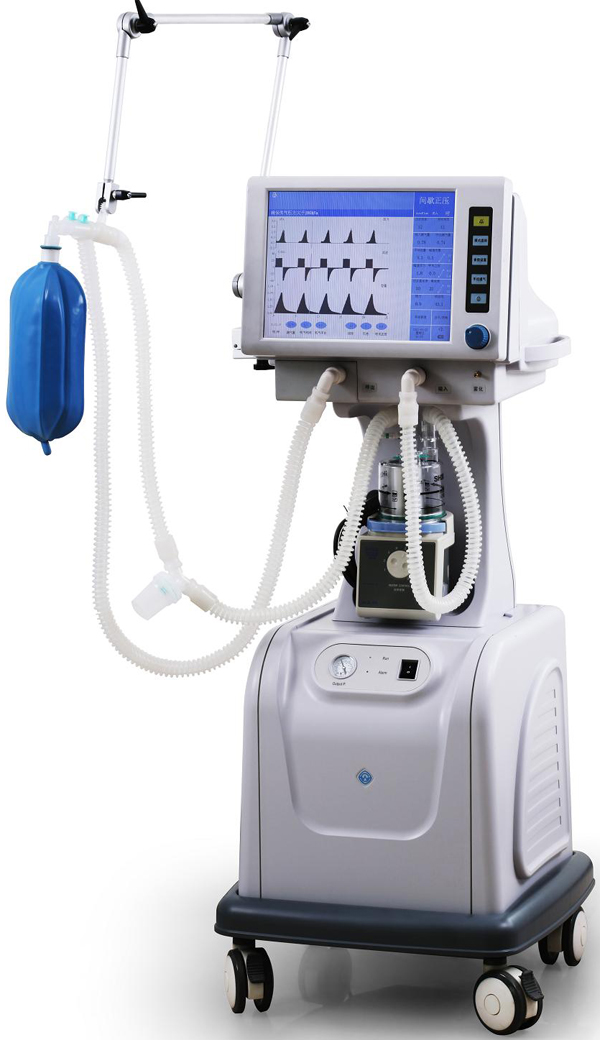

ICU Ventilator LT-3010A

ICU Ventilator

Model: LT-3010A

Main Features:

1. Removable 15 inch large touch screen

2. Day and night mode change

3. Applied for adult and child

4. With high-intelligent control system

5. Humidifier with temperature adjustment

6. Flow (optional) and pressure trigger

7. With air compressor (optional)

Main specifications:

Removable 15 inch large touch screen,

hang-up type that allows the operator to

hang the screen pad wherever requires

Easy to operate

Thinner screen pad with easy handle

Day and night mode change

Support INVASIVE and NON-INVASIVE ventilation mode incl.

Apply for adult and pediatric.

Assistant Nebulization treatment/O2 therapy

Multi-mode ventilation function: (VCV, SIMV, PSV, PCV, CPAP, BIPAP, APRV, SIPPV, SIGH)

Intelligence operating system

Air compressor support

Self testing and calibration with faulty code display

Power: AC 220v±10%, 50Hz±2%, built-in battery for back-up

Gas source: O2, Air

Safety valve: <12.5kPa

Parameter monitoring: tidal volume, MV, breathing rate, inhaling time, Paw, PEEP, pressure control, pressure support, FiO2.

Waveform display: Pressure-time, flow-time, Pressure-volume loop.

Alarm: no tidal volume (asphyxia), MV too high (low), Paw too high (low), FiO2 too high (low), O2 or air failure, AC power failure, back-up battery too low.
