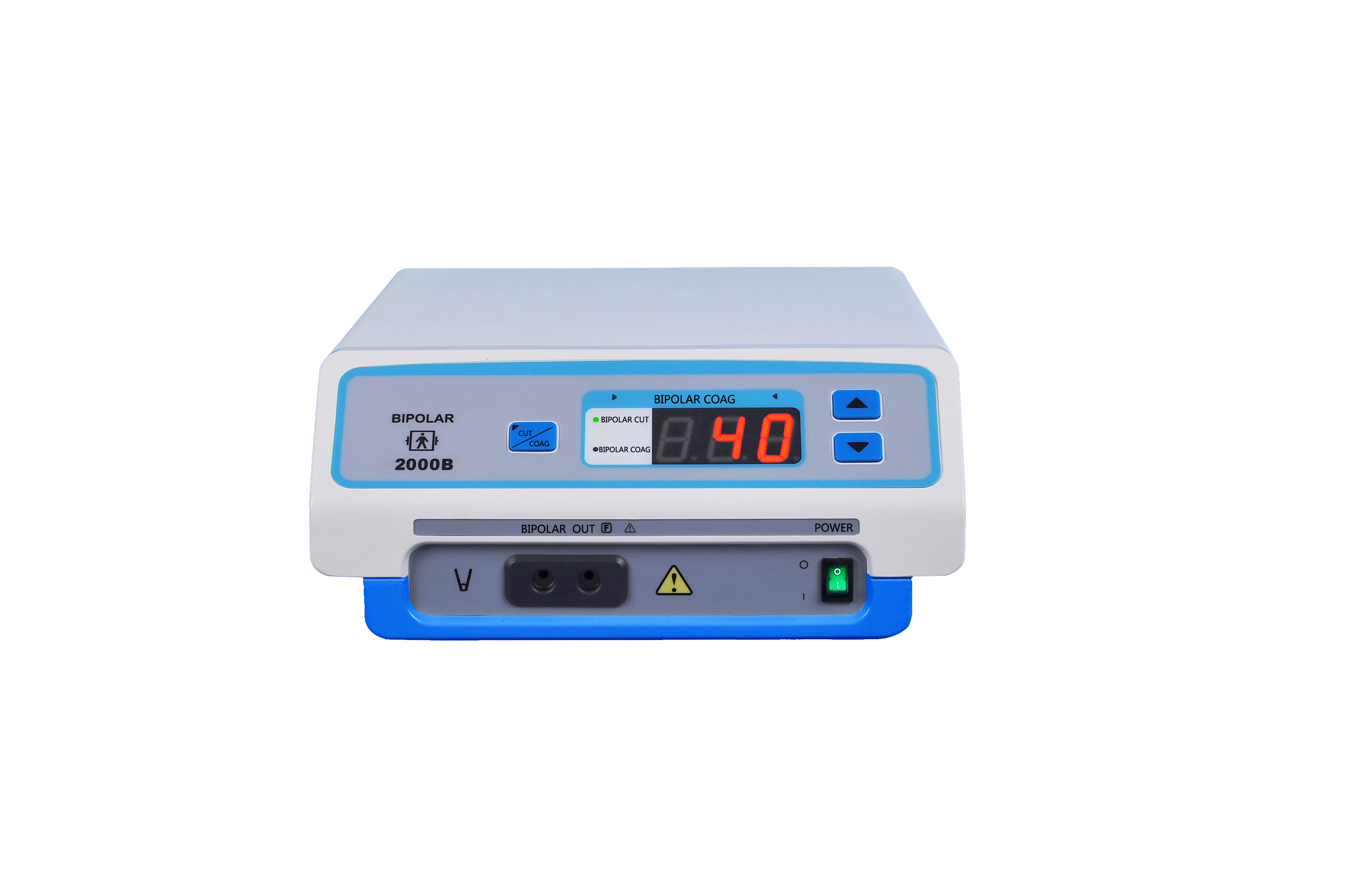

Electrosurgical Generator

Bipolar Coagulator

Product description:
INQUIRY

Main Features:

◆ Deep hemostasis, foot control outputs, mild hemostasis.

◆ According to the depth of hemostasis, the output mode stops automatically. The output power will not reduce when operating in dry and bleeding spot.

◆ Foot control mode: When the tissue reach the coagulation effects, the output power declines slowly.

◆ Auto mode: when the tissue or blood vessel was coagulated, output power drops off sharply, to keep the forceps from sticking and over burnt for tissues.

◆ Low voltage effectively reduces forming of the sparking of forceps, stimulating for the neuromuscular, to increase the security.

◆ Microcontroller system allows this unit can be used in many delicate surgery.

◆ Bipolar cut :macro bipolar.

Technical specifications:

Two working modes: bipolar coag、 bipolar cut

Power: 220V±22V(110V±11V) 50Hz±1Hz

Working frequency:1024KHz

Output power:1) bipolar coag:1-120W(load 200Ω)

2) bipolar cut:1-120W(load 200Ω)

Configuration

Footswitch 1set

None sticky bipolar Forceps and cable 1set
