Main Features

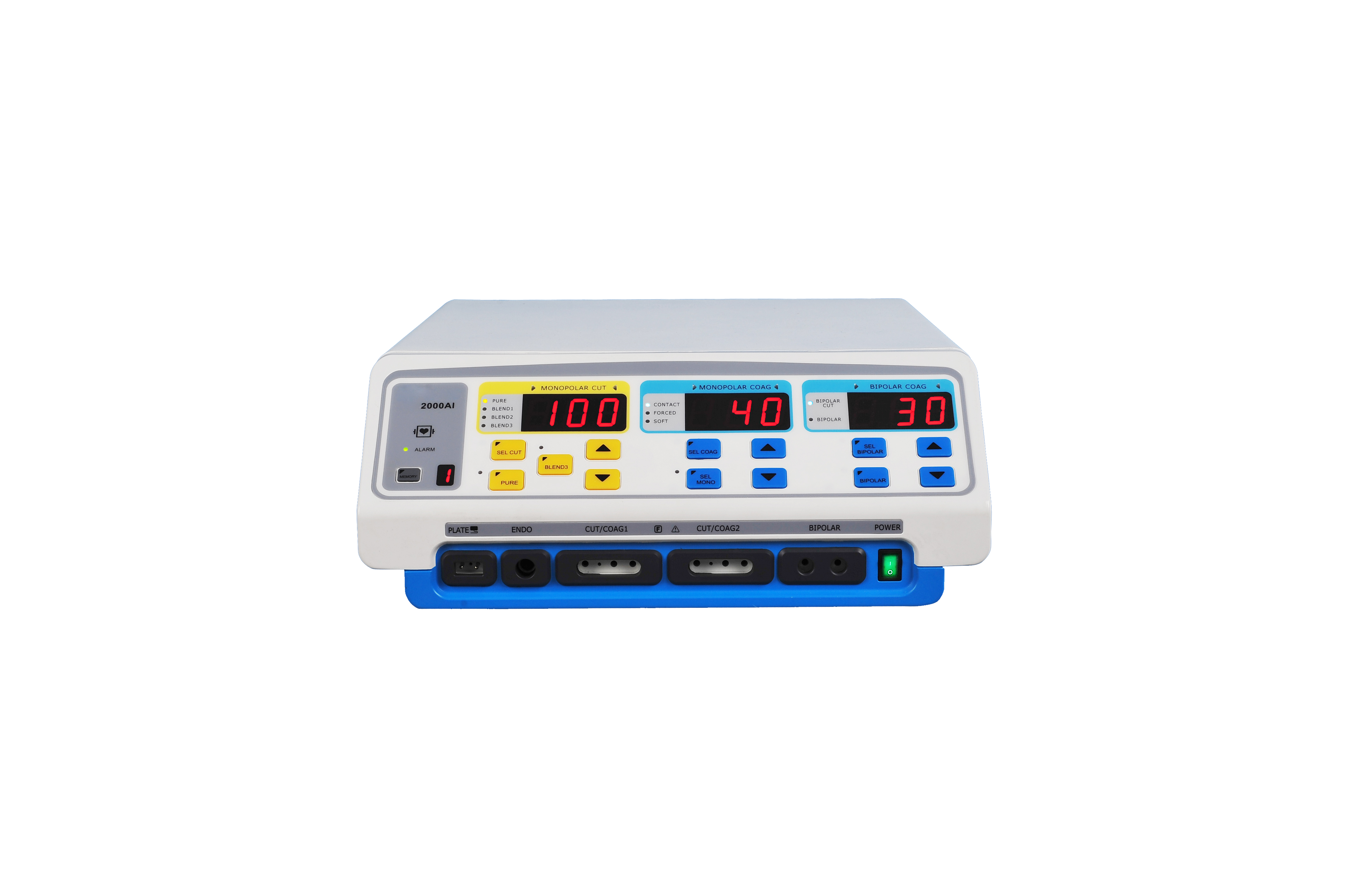

★ Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
★ Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.
★ Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
★ Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
★ Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
★ Both hand and foot controlled.
★ Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
★ Memory for at least 10 frequently used programs.
★ Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
★ The ESU unit can be connected with laparoscope and endoscope, etc.
★ Protection against over-voltage and over-current.
★ Defibrillation protected.
★ Convection refrigeration without ventilator.
★ Mounted on a 4 wheels cart(optional).
★ Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:512KHz b) Bipolar:1024KHz
Power rating: 1100VA±10%
Nine working modes:
◆Mono-polar Cut
a) Pure cut:1W~400W( Load 800Ω)
b) Blend1:1W~300W(Load 800Ω)
c) Blend2:1W~200W(Load 800Ω)
d) Blend3:1W~150W(Load 800Ω)
◆Mono-polar Coag
e) Spray Coag:1W~80W( Load 800Ω)
f) Forced Coag:1W~120W( Load 800Ω)
g) Soft Coag:1W~120W( Load 800Ω)
◆Bipolar
h) Bipolar Coagulation: 1W~70W( Load 200Ω)
i) Bipolar Cut: 1W~120W( Load 200Ω)
◆Power Consumption: ≤1100VA
Configuration Sheet
Electrosurgical Pencil 5pcs
Electrosurgical Pad 10pcs
Electrosurgical pad cable 1pcs
Footswitch 1set
Bipolar Forceps 1pcs
Bipolar forceps cable 1pcs
