Colposcope

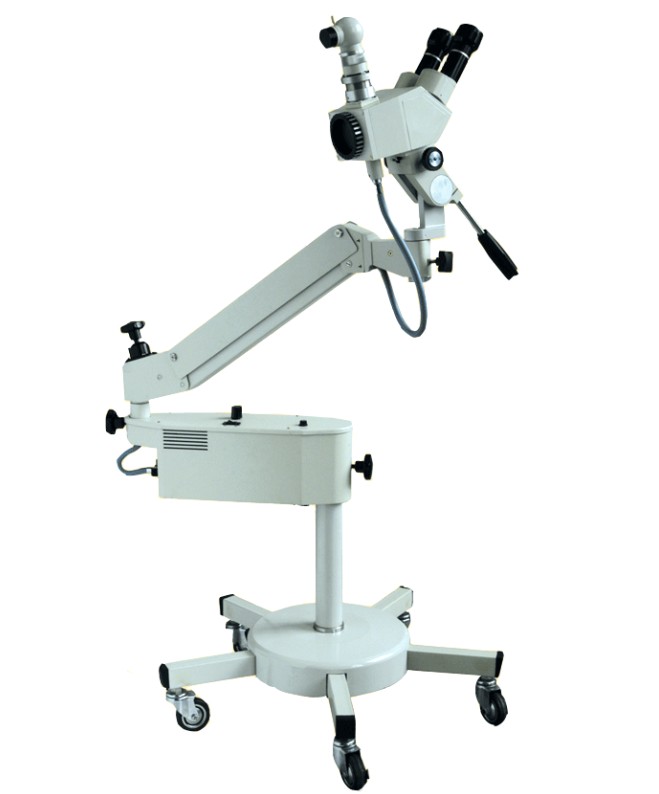

Compact Model Optical Colposcope LT-9200A
LT-9200A Compact Model Optical Colposcope
Technical Parameters:
China brand microscope: Observation angle: 45° tilted
Magnification of eyepiece: 16X
Focal length of objective: F=230mm & F=280mm
Magnification changer 5-step: 0.4X, 0.6X, 1X, 1.6X, 2.5X
Optical Magnification: 4x-25x
Working distance: 250mm - 350mm
Linear field: 11mm-84mm
Fine focusing distance: +-9mm
Beam Splitter: 50:50 Beam splitter
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp or 250W xenon light
Filter: Build-in green filter.
Standard Configuration:
1) CCD camera 1 set
2) Special video capture card 1 pc
3) Colposcope holder 1 set
4) China brand optical microscope 1 set
5) Power line 1 pc
6) Connecting line 1 set
7) User manual 1 pc
8) Certificate 1 pc
9) Packing list 1 pc
