Medical Quick Cassette Pressure Steam Autoclave Sterilizer Machine used for sterilization ophthalmology dentistry gynecology

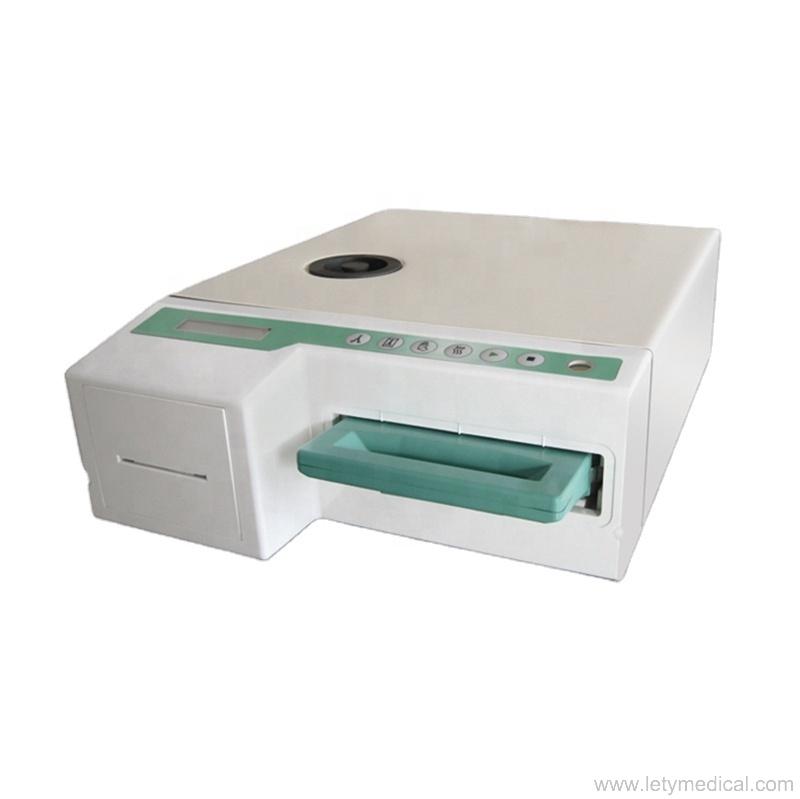

Quick Cassette Pressure Steam Autoclave Sterilizer

Model:LTL-KS-52

Application

Mainly used for: sterilization ophthalmology, dentistry, gynecology and other small devices.

Main features: sterilization fast, easy to use and compact.

Features

1) Fast: From replacement, preheating, heating, sterilization, exhaust, ending the shortest of all the sterilization process is only 9-12 minutes. Its fast and efficient heating and cooling device can be reduced under high temperature and high pressure environment, the time, can greatly improve the service life of precision instrument.

2) Flexibility: 3 sterilization shortcut keys, shortcut keys for each sterilization time and temperature can be set according to the actual needs once again to fully meet the different users, sterilization needs of different instruments by the user.

3) Efficient: Execute evaluation methods and standards GB15981-1995 disinfection and sterilization effect. Forced exhaust using pulsed method sterilization, sterilization effect is more reliable.

4) Reliable: self-detection systems, such as water failed, will alarm when the tank water, and tips. In the sterilization process, once an exception occurs, the system will automatically stop running, and the cause of the alarm is displayed on the screen and abnormal printing.

5) is simple: small size, light weight, wide applicable environmental requirements. Machine simple and intuitive user interface, all Chinese language and precise control makes operation simple microprocessor. Sterilization box itself is a good vehicle, so no instrument sterilization wrap and store excess equipment, can be done Jimie or use. Such as with the use of multiple sterilization boxes will greatly enhance the speed and ease of sterilization used.

Technical Parameters

More model

Application

CHL-KS-52L-type cassette sterilizer is the company in accordance with market demand and developed a new generation sterilizer. The sterilizer is mainly used for sterilization ophthalmology, dentistry, gynecology and other small devices. Sterilization is the speed and ease of use in mind we have designed. The product is only 2-3 minutes to heat up to 135 degrees both, than sterilizer on the market greatly reducing the heating time, improve work efficiency. Use also provides a very convenient and simple operation, users can set the time of sterilization, sterilization temperature and drying time depending on the objects sterilized, and stored in the corresponding shortcut keys (metal equipment, packaging equipment and non-metal instrument), so that the next time use.

Technical Parameters

1) Device Size: 590 × 460 × 190 mm

2) Sterilization Box Size: 490 × 180 ×78 mm

3) Capacity: 5.2 liters

4) Power: 1.3kVA

5) Power supply: AC220V ± 10% 50Hz ± 1Hz

6) Maximum working pressure: 242kPa

Technical Parameters

1) Device Size: 570 × 415 × 170 mm

2) Sterilization Box Size: 280 × 180 × 38 mm

3) Capacity: 1.8 liters

4) Power: 1.3kVA

5) Power supply: AC220V ± 10% 50Hz ± 1Hz

6) Maximum working pressure: 242kPa
