Autoclave sterilizer machine

  • Medical Table top Quick autoclave steam sterilizer 20L/24L Factory sterilizing equipment steam disonfection steel glass
Medical Table top Quick autoclave steam sterilizer 20L/24L Factory sterilizing equipment steam disonfection steel glass

Medical Table top Quick autoclave steam sterilizer 20L/24L Factory sterilizing equipment steam disonfection steel glass

  • Autoclave Factory
  • Medical steam disonfection
  • swirl glass table
  • Product description: Medical Table top Quick autoclave steam sterilizer 20L/24L Factory sterilizing equipment steam disonfection steel glass
  • INQUIRY

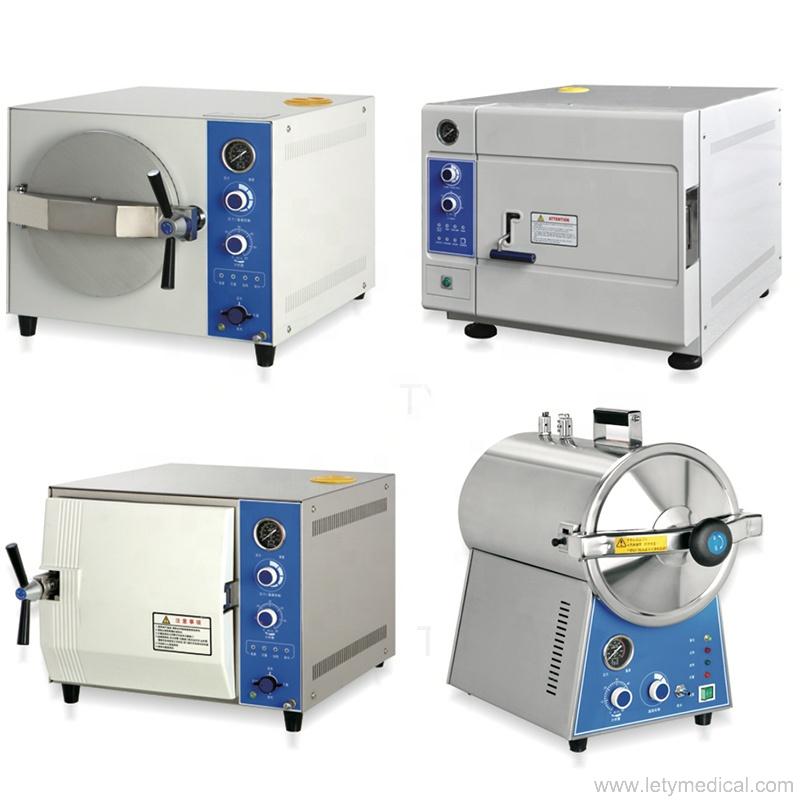

Medical Table top Quick autoclave steam sterilizer 20L/24L Factory sterilizing equipment steam disonfection steel glass Quick Pressure Steam Autoclave Sterilizer

Model:LTM-XB24J/XB22J


Application

Mainly used for: sterilization ophthalmology, dentistry, gynecology and other small devices.

Main features: sterilization fast, easy to use and compact.




Features



1.Indicator light indicates working state.

2.For 4~6 minutes rapidly sterilizing.

3.Sterilizing temperature and time can be preset.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Over temperature & over pressure auto-protection.

6.Safe protection of water lacking.

7.Exhaust the cool air automatically.

8.With three stainless steel sterilizing plates.

9.The chamber of the sterilizer is made of stainless steel.

10.Automatically shut off with beep reminding after sterilization.



Technical Parameters



   MODEL    TECHNICAL DATA

LTM-XB20J

LTM-XB24J







Sterilizing chamber volume

20L(φ250×420 mm)

24L(φ250×520 mm)

Maximum working pressure

0.22Mpa

Maximum working temperature

134℃

Adjustment of temperature

105-134℃

Timer

0-60 min

Chamber temperature equal

≤ ± 1℃

Source power

1.5KW/AC 220V 50Hz (AC110V 60HZ)

Sterilizing plate

340×200×30 mm (3 piece)

400×200×30 mm (3 piece)

Dimension

480×480×384 mm

580×480×384 mm

Package dimension

700×580×500 mm

800×580×500 mm

 G. W/N.W

44/40 kg

50/45 kg
