Hospital Laundry machine

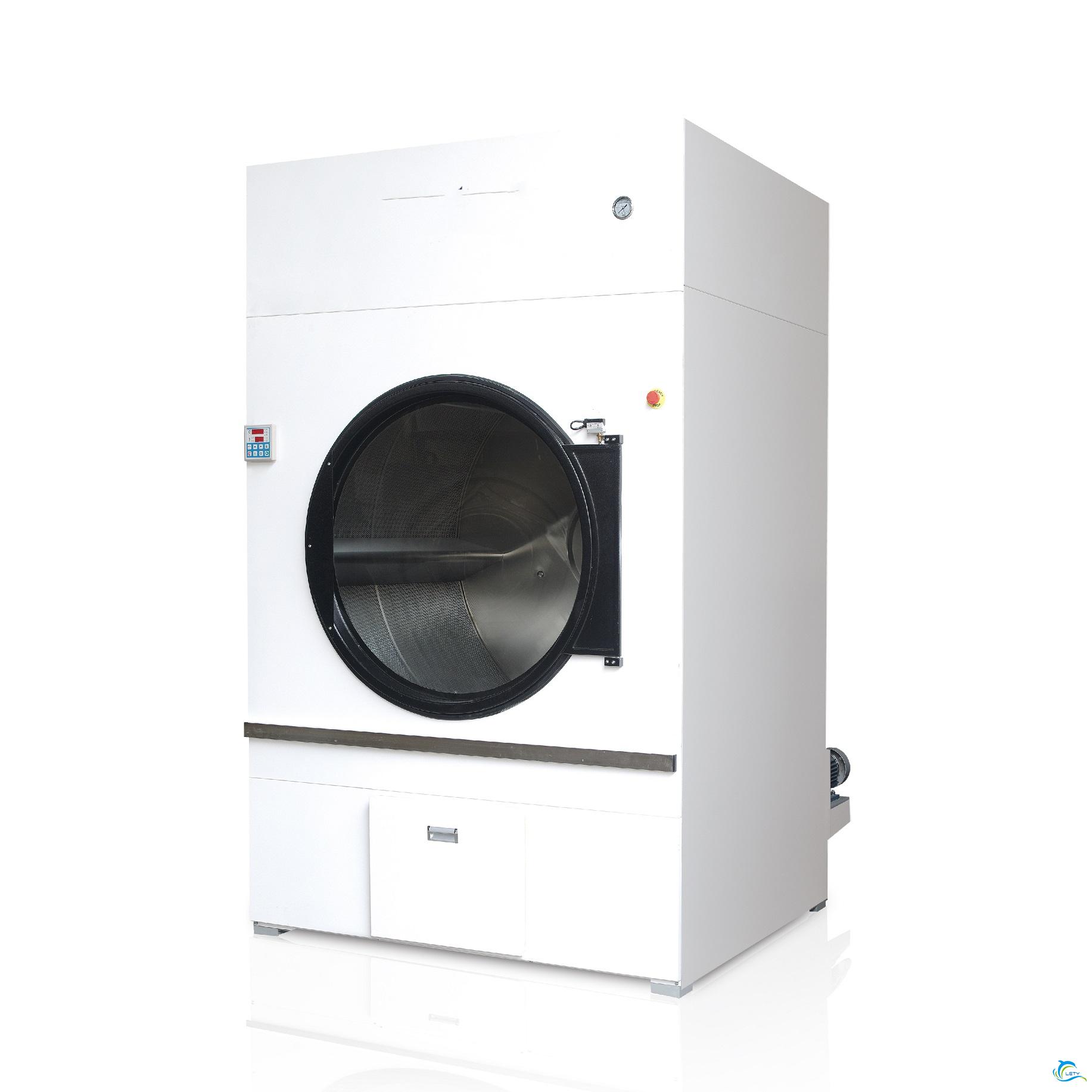

Tumble dryer

Product description:
INQUIRY

Product Overview

1,Heating: electrical,gas,steam, electrical and steam, coal. Operator could choose.
2,Drums are all in stainless steel,panels are in stainless steel or spray material, prevent the pollution of corrosion to fabric.
3,Large door, easy loading and unloading, opens 180°, option:left or right opening.
4, Optimal design of cooling fan, with the best heat dissipation, wind speed.
5, Fully automatic computer control the temperature, temperature control devices, over-temperature protection device.

6, Easy accessibility to the vital parts, easy service, quick replacement of the belt.

Model		HG-10	HG-15	HG-20	HG-25	HG-30	HG-35	HG-50
Capacity	kg	10	15	20	25	30	35	50
Drum Dimension	mm	Φ670x350	Φ750x645	Φ890x700	Φ970x670	Φ980x840	Φ970x1000	Φ1070x1000
Drum voluem	l	123	285	435	495	633	739	900
Motor Power	kw	0.55	0.55	0.75	0.75	0.75	0.75	1.1
Fan power	kw	0.55	0.55	0.75	0.75	0.75	0.75	1.1
Heating power	kw	8	14.8	20.25	20.25	32	32	39.6
Steam Pressure	mpa		0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Consumes of Steam	kg		40-50	50-60	50-60	60-70	60-70	70-80
Dimension(L.W.H)	mm	1000x870x1780	840x1180x1700	1040x1210x1780	1060x1250x2000	1130x1370x1920	1060x1560x2000	1320x1550x1988
Net Weight	kg	250	400	430	450	460	480	550
