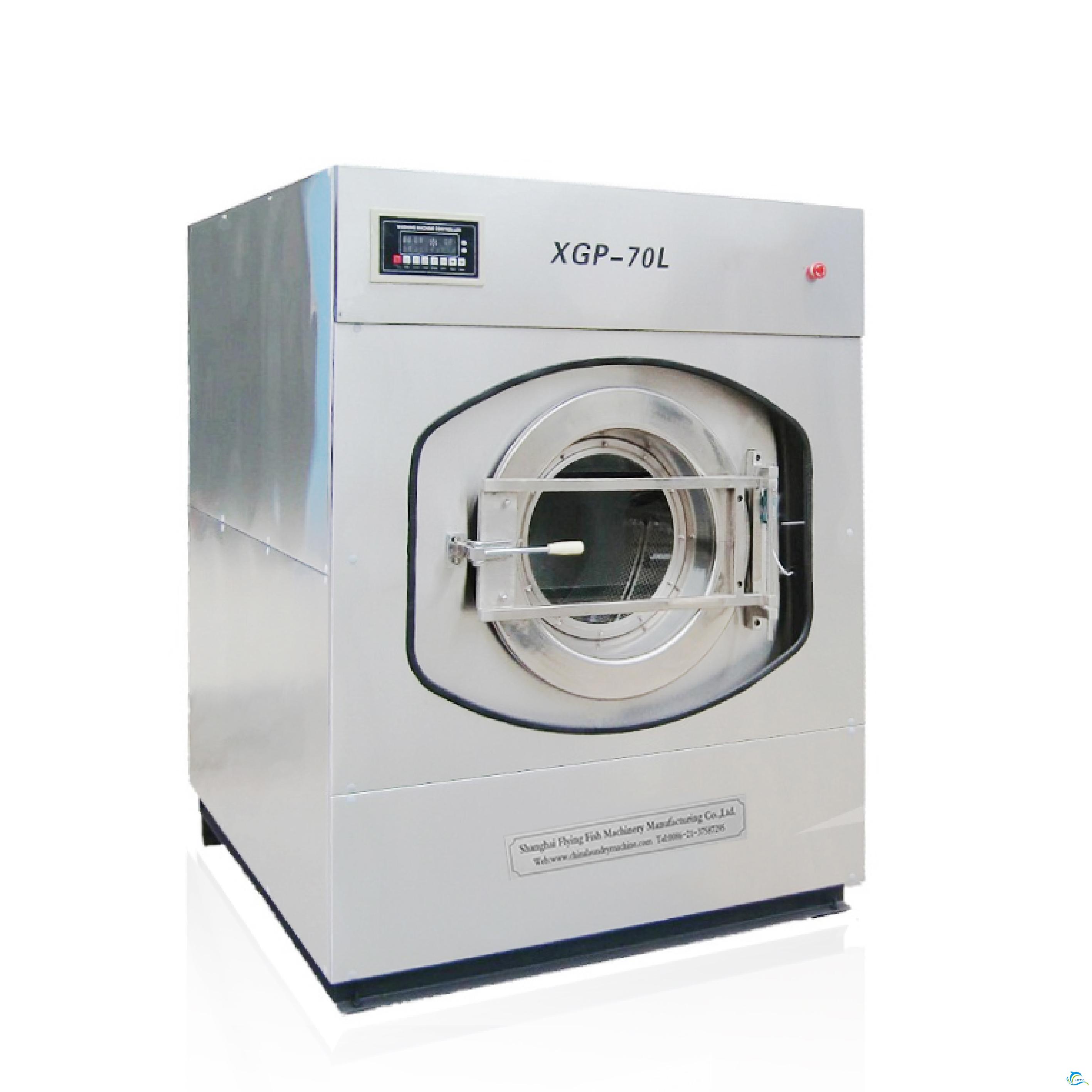

Hospital Laundry machine

Vertical Industrial Washing machine

Product description:
INQUIRY

Product Overview

1,The machine adopts vertical structure, operate easily, looks nice.
2,It can wash, can't extract, operate & maintain easily and flexibly.
3,The drum and panel are in stainless steel,smooth surface,good appearance, long life.
4,It is driven by triangle belt which is duable and moves smooth with little shock.

5,Suitable for laundry,troop, hospital, hotel,dyeing factory,etc.,to wash various fabrics made of cotton,linen, chemical fibre,etc..

Model		XGP-15L	XGP-25L	XGP-35L	XGP-50L	XGP-70L	XGP-100L
Capacity	kg	15	25	35	50	70	100
Drum Dimension	mm	Φ750×380	Φ980x395	Φ980x495	Φ980x666	Φ980x950	Φ1200x850
Inlet Water Pipe	inch	1	1.5	1.5	1.5	2	2
Out Water Pipe	inch	2	2	2	2	2	3
Inlet Steam Pipe	inch	0.75	1	1	1	1	1.5
Steam Pressure	mpa	0.2--0.6	0.2--0.6	0.2--0.6	0.2--0.6	0.2--0.6	0.2--0.6
Motor Power	kw	1.1	1.1	1.5	1.5	2.2	3
Voltage	v	220/380	380	380	380	380	380
Dimesion LxWxH	mm	900x900x1420	1200x1100x1630	1200x1150x1630	1200x1450x1630	1200x1650x1630	1400x1600x1850
Net Weight	kg	300	420	480	530	600	1000
