Ultrasound machine

  • UProbe-5P wireless mini ultrasounder for PICC and other intervention
  • UProbe-5P wireless mini ultrasounder for PICC and other intervention
  • UProbe-5P wireless mini ultrasounder for PICC and other intervention
UProbe-5P wireless mini ultrasounder for PICC and other interventionUProbe-5P wireless mini ultrasounder for PICC and other interventionUProbe-5P wireless mini ultrasounder for PICC and other intervention

UProbe-5P wireless mini ultrasounder for PICC and other intervention

UProbe-5P wireless mini ultrasounder for PICC and other intervention

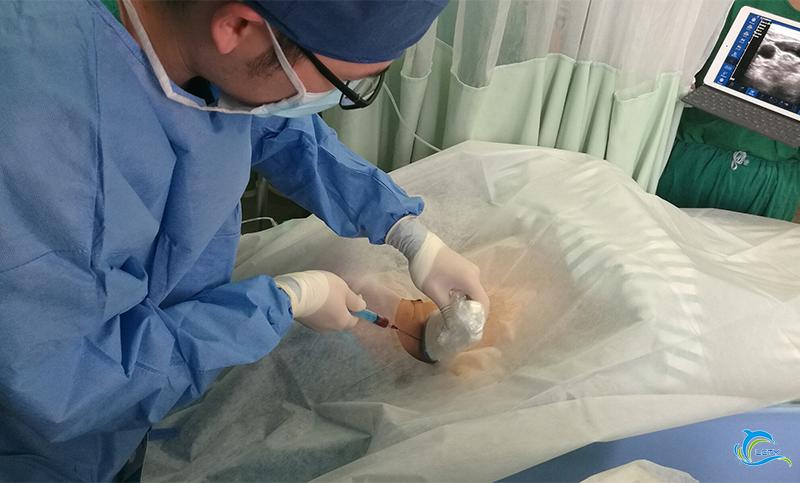

This wireless probe type ultrasounder is special design for  PICC and other intervention.

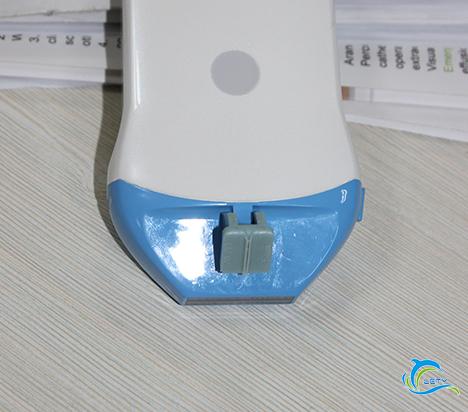

Its head one side with needle guide holder fixing device can be directly set the guide pin frame, the another side with the puncture guide line for who not need use needle guide holder. Coupled with software which can quickly locate the depth and diameter of plane vascular puncture navigation function.






Specifications of linear probe:
-Scanning mode: Electronic array
-Display mode: B, B/M
-Frequency: 10MHz/14MHz
-Depth: Convex 100mm~280mm, Linear 20mm~55mm
-Image Adjust: Gain, Focus, Harmonic, Denoise
-Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development.
-Measure: Length, Area, Angle, Obstetrics
-Image frame rate: 18 frames / second
-Battery working time: 3 hours
-Charge: by USB or by wireless charger
-Dimension: 156×60×20mm
-Weight: 270g
-Wifi type: 802.11g/20MHz/5G/450Mbps
-Working system: Apple iOS and Android, Windows
